IEC60529 IP Grade Rain Test Chamber IPX1-9K Waterproof

IEC60529 IP grade Rain Test Chamber IPX1-9K WaterProof Testing machine

Sanwood is specialized in manufacturing various enviromental chambers. The Rain Test Chambers series includes the test apparatus and test chambers to run the tests per IEC60529 and other international standards, IP grade of IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, IPX8, IPX9K, single function and integrite functions in one chamber. Sizes and models depends on the specimen size to be tested.

Sanwood rain test chamber is mainly applied for exterior lighting, single device, automobile luminaires enclosure protection, simulate lively the possible rain and water drop environment that the electrical parts will bear during transportation and application, finally to check all kinds of products' waterproof property and performance.

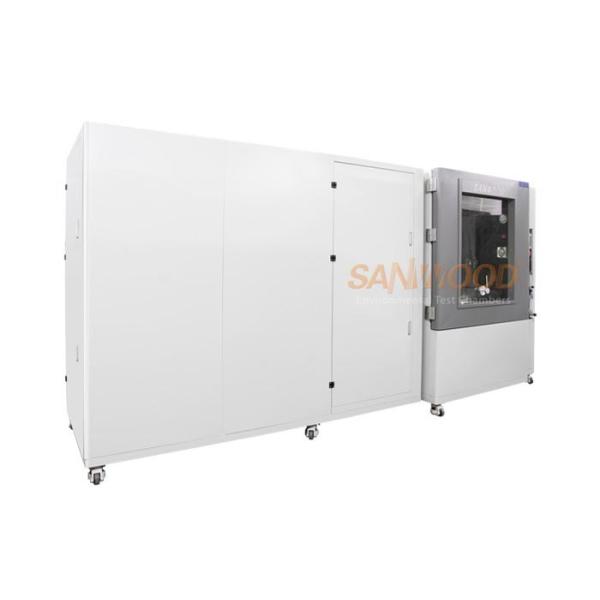

Sanwood rain test chamber SM-IPX1-9K is an integrate model which can simulates the rain drip tests IPX1, IPX2, rain spray tests IPX3, IPX4, rain flush tests IPX5,IPX6 and high temperature & high pressure rain tests IPX9K, largely save the space of the laboratory and the test water can be recycled used. We customize this model with the chamber overall size according to customer's requirement, to keep the IPX56 flushing path in the chamber left.

Sanwood rain test chamber features

1. Automatical test system and touch screen controller: the self-developed controller with waterproof grade IPX test operation interface can automatically carry out the test by directly selecting the waterproof grade in the touch screen.

2. Water recycle system: the chamber has its own water tank, circulating water, no need to build a professional waterproof test room.

3. Bench table can rotate and tilt at an angle as required.

4. Stainless steell chamber body.

5. Customized features and sizes and models are available in Sanwood.

Rain Tests methods per EN60529

1. IPX1 Drip test: place the specimen in the test table, rotate speed 1r/min; the distance between specimen top surface to drip nozzle no more than 200mm; drip water flow 10.5mm/min and continous 10 mins for one test.

2. IPX2 15° angle drip test: the test table angel at 15° for one side and flow rate at 30.5mm/min and continous 2.5min; change to another 3 sides and total test time 10 mins.

3. IPX3 water spray test: choose the right radius pendulm pipe according to the specimen size, keep the test table surface at the horizontal line of the pendulm pipe diameter. Place the specimen on the test table and top surface to the spray nozzle is no more than 200mm. The water flow is 0.07L/mm per nozzle. Pendulm pipe swing angle 60° and 120°； and swing time of 2x120° is 4 second. Total test time 10 mins.

4. IPX4 water spray test: the spray area is each side 90° when pendulm pipe starts in the middle. Swing angle 180°, and swing time of 2x180° is 12 second. Total test time 10 mins.

5. IPX5 water flushing test: flushing nozzle 6.3mm inner diameter; water flow 12.5L/min (750L/h); Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

6. IPX6 water flushing test: flushing nozzle 12.5mm inner diameter; water flow 100L/min; Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

7. IPX9K Test: the water temperature should be kept at 80℃ ± 5℃, pressure at 8000 ~ 10000 kPa; the injection angle is 0° , 30°, 60°, 90°. The distance between spray nozzle and the sample is 100 ~ 150mm. Total 120 seconds.

SM-IPX1234569K-1000 Technical Specification

* Cusstomized sizes and models are available.
