20VDC 300p Plastic Water Solenoid Valve For Sprinkler System

Categories Water Solenoid Valve
Brand Name: AFK
Model Number: 300P
Certification: CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Delivery Time: 1WEEK
Packaging Details: Expotrt Packing
Material: Plastic
Power: Solenoid
Port size: 2",1"
Media: Water
Application: General
Standard or nonstandard: Standard
Type: Normal close
Voltage: 110V,AC220V,24V. AC24V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

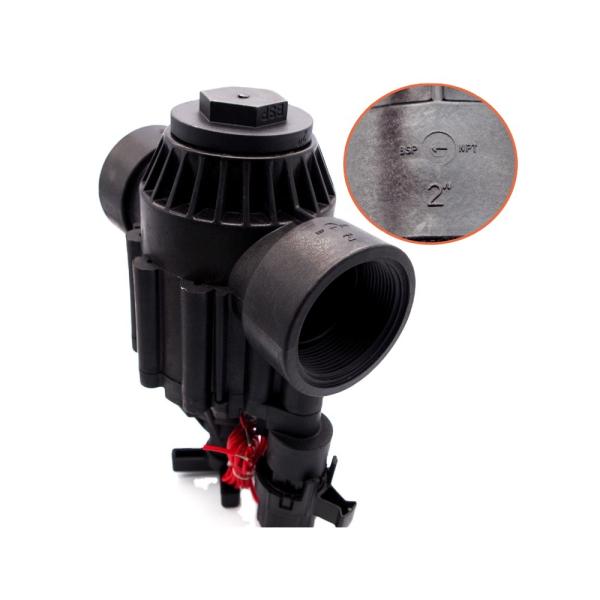

20VDC 300p Plastic Water Solenoid Valve For Sprinkler System

Specification

No.ITEMTECHNICAL PARAMETERS
1materialnylon plastic body, NBR seal
2Fluidwater
3Fluid temperature≤43°C
4Environment temperature≤52°C
5Service voltage6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6Pulse width20-500mSec (only for latching type)
7Coil resistance6 Ω
8Capacitance4700uF
9Coil inductance12mH
10ConnectionG(BSP) female thread is regular, special order for NPT(3/4" and 1")
11Size

075D: 3/4", 20mm (BSP or NPT female)

100D:1", 25mm (BSP or NPT female )

100P:1", 25mm (BSP female)

150P:1-1/2"(1.5"), 40mm (BSP female)

200P:2", 50mm (BSP female)

300P:3", 80mm (BSP female, male, flange)

400P:4", 100mm (BSP female, male, flange)


12Working pressure

3/4" and 1": 1-10bar

1.5"and 2": 1-10.4bar

3"and 4": 0.7-14bar


13Flow rate

3/4": 5 /h

1": 9 m³/h

1.5"-2": 0.45-34.05 m³/h

3"-4": 1.1-70 m³/h


14Operation modevalve element lock position,valve open, release position, valve close.
