| Categories | Ultrasonic Transducer Speaker |
|---|---|
| Brand Name: | TAIMI |
| Model Number: | TM-58MM 8ohm,0.5w Speaker |
| Certification: | ISO9001、ISO14001、ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1000PCS |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000000/month |
| Delivery Time: | 10~15days |
| Packaging Details: | safe packaging |
| Material: | metal,Paper film loudspeaker |
| NOMINAL SIZE: | 57MM Speaker |
| VOICE COIL IMP: | 8OHM ±15% |
| RESONT FREQ: | 926 Hz ±20% |
| OURPUT SPL: | AT 1 KHz：104.8±2db |
| RATED POWER: | 0.5W speaker |
| MAX POWER: | 1W |
| DISTORATION: | 5%MAX（1000HZ 0.75W） |
| NOISE: | MUST BE NORMAL8.9 |
| HEAT TEST: | AFTER TEST MEET ITEM8.9 |
| Company Info. |
| TaiMi(Shenzhen) electronics technology Co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

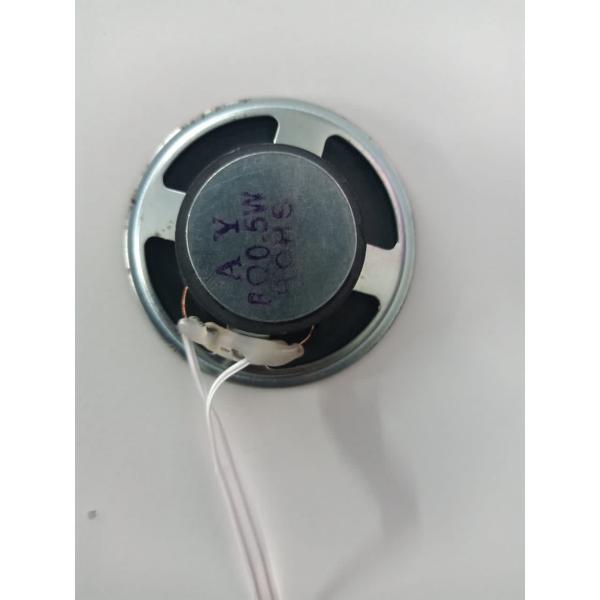

57mm 8 ohm 0.5 W 3W external magnetic speaker Paper film loudspeaker
1.57mm 8ohm,0.5w Speaker specfication:
NO | ITEM | SPECIFICATION | TESTING CONDITION |
1 | NOMINAL SIZE | 57MM | |
2 | VOICE COIL IMP | 8OHM ±15% | AT 1800 Hz |
3 | RESONT FREQ | 926 Hz ±20% | |
4 | OURPUT SPL | AT 1 KHz:104.8±2db average SPL:87.4±2db | AT 1m1w MEASURMENT |
5 | FREQ RESPONSE | Fo~7KHZ output voltage-10db | MAX frequency±20% 10db |
6 | RATED POWER | 0.5 w | |
7 | MAX POWER | 1w | |
8 | DISTORATION | 5%MAX(1000HZ 0.75W) | |
9 | OPERATION | MUST BE NORMAL | PROGRAM SOURCE 0.5W |
10 | NOISE | MUST BE NORMAL8.9 | SINE WAVE 2.0 V |
11 | HEAT TEST | AFTER TEST MEET ITEM8.9 | 55±2°C 16HOURS |
12 | humidity test | AFTER TEST MEET ITEM8.9 | 40±2°C 90-95 %RH 48 HOURS |
13 | LOAD TEST | AFTER TEST MEETITEM | 0.25W 100 HOURS |
14 | MAGNET | Φ21X7X5 MATERIAL WEIGHT OZ | |
15 | TOTAL FLUX | MAXWELL | |
16 | FLUX DENSITY | GAUSS | |
17 | POLARIZATION | ||
18 | NET WEIGHT | G |

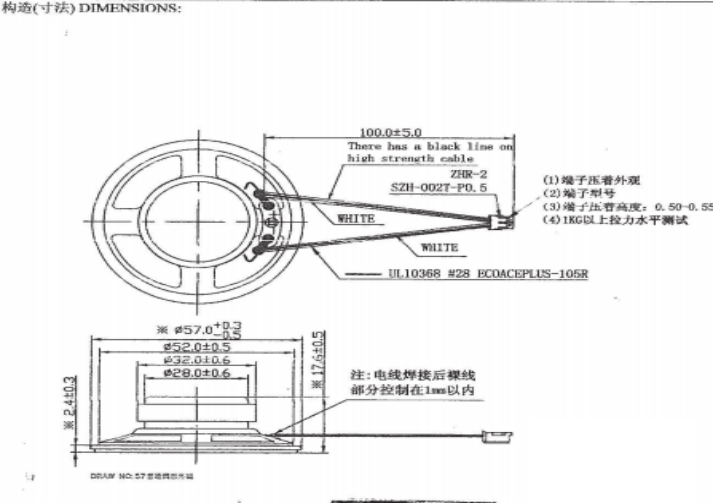

2.57mm 8ohm,0.5w Speaker Paper film loudspeaker with connect cable type:
3.57mm 8ohm,0.5w Speaker Paper film loudspeaker workshop:
FAQ
| 1. Q: When can we get the reply? |
| Any inquiries will be replied within 24 hours. |
| 2. Q: Can i have samples? |
| A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee. |
| 3. Q: What about minimum order quantity? |
| A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first. |
| 4. Q: What about delivery time? |
| A: We will send sample to you within 3 days. |
| Production for big quantity needs 20 to 25 days. And it also depends on product and quantity. |
| 5. Q: What about terms of payment? |
| A: Payment terms: T/T, west Union, Paypal and L/C etc. |
| 6. Q: How you will send the goods to us? |
| A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc. |
| 7. Q: Are you trading company or manufacturer ? |
| A: We are in China buzzer manufactory |
| 8. Q: Do you support OEM and ODM services? |
| A: Yes, surely support. we can customize products according to the drawing. |
| 9. Q: Can you provide driven circuit? |
| A: Yes, of course sure. |
| 10. Q: Can you solve technical problems for us? |
| A: Yes, Our Technical team will try our best to support you. |
