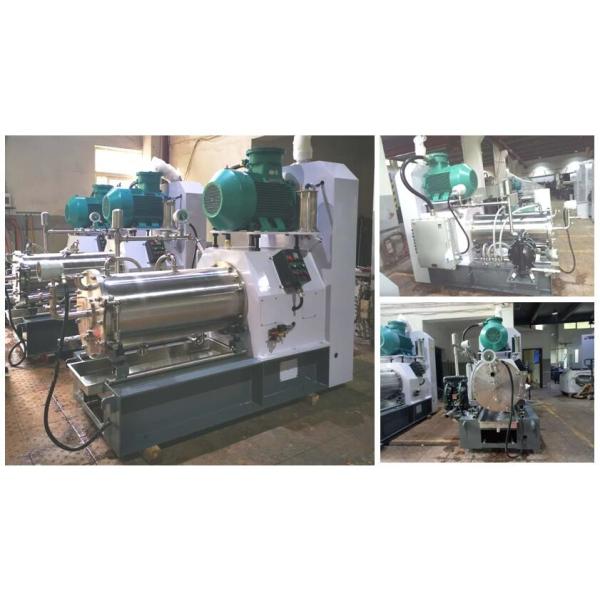

10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding

Disc Type Water/ Oil Based Wet Grinding In Coating 100L 10 um Horizontal Bead Mill Machine

The main introduction:

1. Composition: chamber and disc dispersing system, input system, output system, cooling system, driving system, lubrication system.

2. Corrision resistence and long worklife.

3. Fineness ensurance: grinding medium size and screen ring

4. Temperature control: sectional double spiral water course.

5. High Efficiency: higher 15-30%

6. Different materials for dispersing system: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The Technical Data:

The Configuration instructions:

No	Main parts	SP100	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	Silicon Carbide Ceramics, 9Cr18Mo alloy steel, SUS 304 stainless steel	different mateials for choice
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of Dispersing disk (agitator disk)	PU coated 304 stainless steel, Cr12MoV, GCr15, 9Cr18Mo alloy steel	Choose what you need
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Double end mechanical seal
8	Feeding pump	1"/1.5” ARO diaphragm pump;	IngersoII Rand

The details and spares:

Display of customer site

The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

The related products:

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and dispersing disks can be choosen according to your different grinding materials and industries.
3.The control system will match with different demands, such as PLC or traditional button type.

If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.

•


Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
