| Brand Name: | CLW |
| Model Number: | CLW944F |
| Certification: | CCC ISO ASME |
| Place of Origin: | Suizhou,China |
| MOQ: | 1 UNIT |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T, Western Union, MoneyGram, |
| Supply Ability: | 300units/month |
| Delivery Time: | 30 days after received advance payments |
| Packaging Details: | Naked package shipped by bulk ship |
| Truck brand: | ISUZU,HOWO,DONGFENG,FAW,SHACMAN bulk feed truck |
| Material: | carbon steel/aluminum alloy bulk feed trailer |
| Loading medium: | bulk feed,grain,powder and so on |
| Volume: | 40m3, 40cbm |
| Thickness: | 5mm |
| Color: | Customized |
| Logo: | As per your request |
| Purpose: | chicken/duck/cow feed |
| Company Info. |
| HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Dongfeng Kinland 8x4 40m3 grain electrical auger discharge poultry animal bulk feed transport truck
Description:
The bulk feed trucks produced by our company can transport
different kinds of feeds through separate bins. It has obvious
convenience advantages and wide-ranging uses. It is an essential
transportation tool for farms and feed mills.
Optional feed tank capacity: 8cbm to 40cbm bulk feed truck.
Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard.
Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO , FAW, SINOTRUK, ISUZU bulk feed trucks for choose.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
Specifications:
| Vehicle Main parameter | Cab type | Dongfeng single sleeper cab, air conditioning |
| Overall dimension(L×W×H)(mm) | 12000×2500×3995 | |
| Axle number | 4 | |
| Drive type | 8*4 | |
| Steering type | LHD / RHD with hydraulic power steering | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | Approx 15870 | |
| Chassis parameter | Chassis brand | Dongfeng |
| Transmission | Manual ,10 speed forward and 2 reverse | |
| Brakes | air brake | |
| Tire | 11.00R20, 12 with 1 Spare tire | |
| Engine parameter | Engine brand | Dongfeng Cummins |
| Model | ISL9.5-315E51A | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 232/315 | |
| Displacement(ml) | 9460 | |
| Emission Standard | Euro 3 | |
| Superstructure Parameter | 1. Transport Medium | Kinds of bulk feed |
| 2. Main compostion | Chassis, feed silo, feed inlet, discharge auger system, operation electric hydraulic system,etc | |
| 3.Tank volume(m3) | 40m3/20ton | |
| 4.Tank material | high quality carbon steel | |
| 5. Warehouse | With 4 units separate warehouses to load different kinds of feed | |
| 6. Discharger type: | electric auger, optional hydraulic auger or 24kw diesel generator with addiditional cost | |
| 7. Performance parameter: | (1).Average discharge rate(kg/min):500-600; (2).Discharge system rotation angle:360 degree ,system elevation angle:60 degree; (3).Maximum horizontal distance:6m, Vertical distance:7m-8.5m |

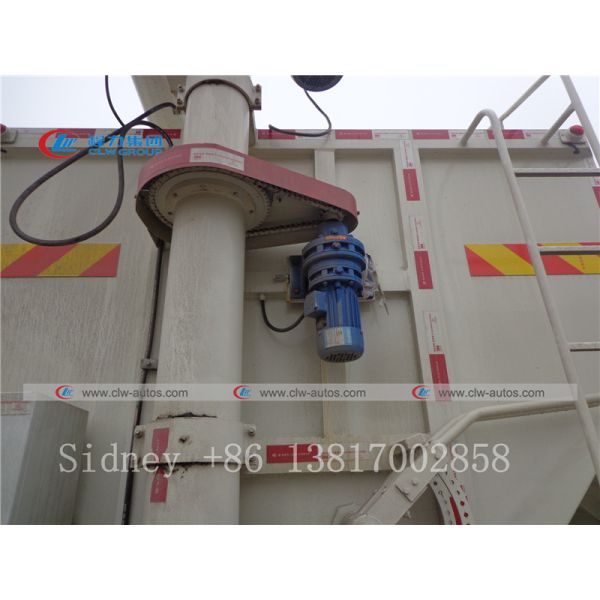

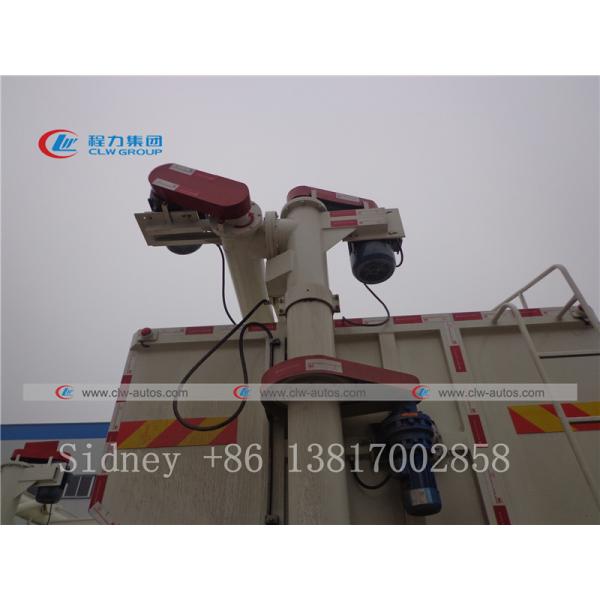

Reference photos
Working show
Bulk Feed Truck Diagram
Different Bulk Feed Truck for choice
