Name: Density 080 1500x500 Polyurethane Model Board 75 Hardness
Brand: LH-tool®
Price: 1 USD

Product Details
Company Profile

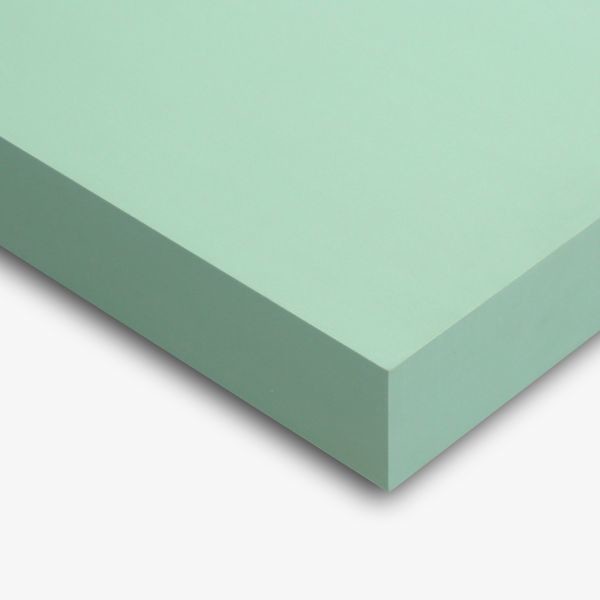

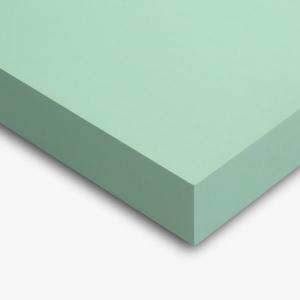

Density 0.80 1500x500 Polyurethane Model Board 75 Hardness

Single color green density 0.8 size1000x500 thickness 50-300mm physical properties of stable processing board

Depending on the requirements of the model or mold, different plates with densities ranging from 800 kg/m³ can be selected. The wide range of densities allows us to select suitable plates in terms of surface quality and mechanical properties.

Due to low CTE, epoxy plates provide high heat resistance and excellent dimensional stability for use in prepreg applications.

TECHNICAL DATA

Colour	Green
Coefficient of thermal expansion	approx. 45 x 10-6 K-1
Temperature resistance	approx. 140 °C
Shore D	approx. 75
Compressive strength	approx. 60 N/mm²
Flexural strength	approx. 39 N/mm²
Density	approx. 0,80 g/cm³
Abrasion resistance (at defined parameters)	approx. - mm³
Fire protection classification	-
Electrical current resistance	approx. - Ω x cm
Notched impact strength	approx. - kJ/m²
Thermal conductivity	approx. - W/mk

Product information on LH-TOOL® 801

CHARACTERISTICS

Polyurethane board
very high temperature resistance
very low coefficient of thermal expansion

APPLICATIONS

prepreg lay up tools
vac form tools
laminating patterns and tools

DIMENSIONS

1.500 x 500 x 50 mm
1.500 x 500 x 75 mm
1.500 x 500 x 100 mm

Surfaces machined parallel.
Other dimensions on request

Product Tags:


*From:	Your email address is incorrect!
*To:	Yongzhou Lihong New Material Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Epoxy Tooling Board
Brand Name:	LH-tool®
Model Number:	LH801
Certification:	ISO9001:2008 Standard
Place of Origin:	China
MOQ:	20Sheets
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3000 Sheets Month
Delivery Time:	15 Days
Packaging Details:	Standard Carton Packing
Materials:	Polyurethane
Color:	Green
Size:	1500500 1000500
Density:	0.8
Hardness:	75
Thickness:	35mm 50mm 75mm 100mm

Item No	Color	Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature	Dimension(mm)	Performance and application
		Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature
		(g/cm3)	(Shore D)	x 10-6 K-1	(°C)
LH-Tool®SB-0351	Apricot	0.35	30-40	45-50	60-70	1500x500x(50-200)	Fine surface structure Easy to form and process Low dust, styling and design models
LH-Tool®SB-0470	Apricot	0.47	40-50	60-65	60-70	1500x500x(50-200)	Very good surface structure Easy to process molding models Master model and data control model
LH-Tool®MB-0600	Brown	0.60	50-55	50-55	70-75	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability Master model, model
LH-Tool®MB-0670	Brown	0.67	60-65	50-55	75-80	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability, master model, model
LH-Tool®MB-651	Brown	0.70	65-70	40-45	75-80	1500x500x(50-200)	Very fine surface structure Good machinability Good dimensional stability Cubing and data models
LH-Tool®WB-0700	Light Green	0.70	75-78	35-45	140-150	1500x500x(50-200)	Very fine surface structure Easy to process Heat resistance up to 150°C Good dimensional stability Prepreg laying tool Vacuum forming die
LH-Tool®MB-460	Brown	0.77	68-73	30-35	75-85	1500x500x(50/75/100)	Stable size, good processing performance, main mold, fixture, sand casting ,Tire mould
LH-Tool®WB-0801	Light Gray	0.80	68-73	45-50	85-90	1500x500x(35/50/75/100)	Fine surface structure Good dimensional stability Good compressive and bending strength Master model, model Fixtures and jigs Vacuum forming tool
LH-Tool®MB-950	Brown	0.98	78-82	20-30	190-200	1500x500x(50/75/100)	Prepreg lay-up tooling, vacuum forming, core box mold, high temperature environment application
LH-Tool®MB-5100	Beige	1.0	75-80	30-35	75-85	1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5120	Beige	1.20	80-82	35-40	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5112	Green	1.20	80-85	30-35	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping die, metal forming die and gage
LH-tool®WB-1404	Olive Green	1.40	85-90	55-55	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-tool®WB-1460	Green	1.46	80-85	60-65	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	Stable size, high surface density, good toughness, suitable for sheet metal stamping inspection system mold, mold
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, test fixture
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®0500A/B	Brown	0.50	50-55	50-60	60-70	5kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
LH-Tool®5200A/B	Brown	0.7-0.8	60-70	45-50	70-75	10kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
