Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump

Categories Hydraulic Pump Excavator Parts
Brand Name: Belparts
Model Number: K5V140DTP-9C12-17T
Certifiion: OEM
Place of Origin: Made in china
MOQ: 1PCS
Price: Negotiated price
Payment Terms: T/T, trade assurance,PayPal
Supply Ability: 1000PCS
Delivery Time: 1~7 days
Packaging Details: Wooden case
Model: SY235-8
Warranty: 1 Year
Weight: 145Kg
Condition: 100% New
Color: Red
Texture: Steel
Part name: Hydraulic pump/Main pump
Quality: High quality
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump

Excavator K5V140DTP 31N8-10011 hydraulic pump R305-7 pilot/main/oil pump



Product nameK5V140DTP Hydraulic pump R305-7 main pump
Place of Origin:China(mainland)
Model:R305-7
Part number:K3V112DT-9N24-14T
MOQ:1 PCS
Payment term:T/T, trade assurance,PayPal
Delivery time:Within 1~7 days after receiving the payment
Packing:Standard exporting packing or as required

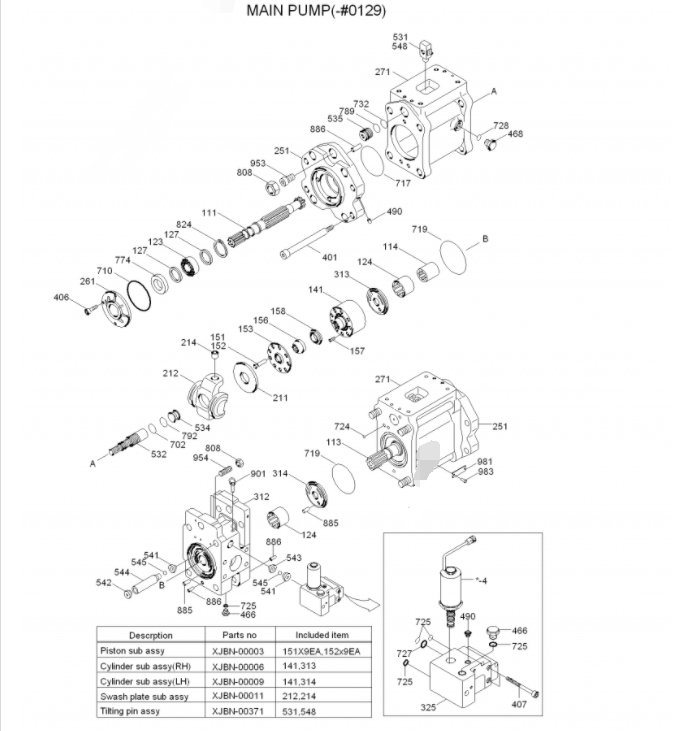

List of spare parts

#Part NoPart NameQty.
*31N8-10011MAIN PUMP1
*-1XJBN-00996MAIN PUMP UNIT1
111XJBN-00015SHAFT-DRIVE(F)1
113XJBN-00153SHAFT-DRIVE(R)1
114XJBN-00367COUPLING-SPLINE1
123XJBN-00017BEARING-ROLLER2
124XJBN-00018BEARING-NEEDLE2
127XJBN-00019SPACER-BEARING3
NS141XJBN-00007BLOCK-CYLINDER2
NS151XJBN-00004PISTON18
NS152XJBN-00748SHOE18
153XJBN-00020PLATE-SET2
156XJBN-00021BUSHING-SPHERICAL2
157XJBN-00022SPRING-CYLINDER18
211XJBN-00023PLATE-SHOE2
NS212XJBN-00012PLATE-SWASH2
NS214XJBN-00013BUSHING-TILTING2
251XJBN-00024SUPPORT2
261XJBN-00025COVER(FR)-SEAL1
271XJBN-00026CASING-PUMP2
312XJBN-00027BLOCK-VALVE1
NS313XJBN-00008PLATE(R)-VALVE1
NS314XJBN-00010PLATE(L)-VALVE1
N325XJBN-00380CASING-VALVE1
401XJBN-00028SCREW8
406XJBN-00355SCREW-HEX SOC HD4
407XJBN-00381SCREW3
466XJBN-00356PLUG3
468XJBN-00357PLUG4
490XJBN-00032PLUG32
NS531XJBN-00369PIN-TILTING2
532XJBN-00033PISTON-SERVO2
534XJBN-00034STOPPER(L)2
535XJBN-00035STOPPER(S)2
N541XJBN-00036SEAT4
N543XJBN-00037STOPPER 12
N544XJBN-00039STOPPER 22
N545XJBN-00359BALL-STEEL4
NS548XJBN-00360PIN-FEED BACK2
702XJBN-00040O-RING2
710XJBN-00041O-RING1
717XJBN-00042O-RING2
719XJBN-00043O-RING2
724XJBN-00361O-RING16
725XJBN-00362O-RING8
727XJBN-00283O-RING1
728XJBN-00363O-RING3
732XJBN-00047O-RING2
774XJBN-00048SEAL-OIL1
789XJBN-00049RING-BACK UP2
792XJBN-00050RING-BACK UP2
808XJBN-00364NUT4
824XJBN-00052RING-SNAP2
885XJBN-00053PIN-22
886XJBN-00365PIN-SPRING4
901XJBN-00055BOLT-EYE2
953XJBN-00056SCREW-SET2
954XJBN-00057SCREW-SET2
981XJBN-00156NAME PLATE1
983XJBN-00341PIN2
*-2XJBN-00001REGULATOR1
*-3XJBN-00002GEAR PUMP1
*-4XJBN-00014CASING ASSY-EPPR VLV1
011XJBN-00003PISTON SUB ASSY
SEE ILLUST
2
013XJBN-00006CYLINDER ASSY-RH
SEE ILLUST
1
014XJBN-00009CYLINDER ASSY-LH
SEE ILLUST
1
030XJBN-00011SWASH PLATE ASSY
SEE ILLUST
2
053XJBN-00371TILTING PIN ASSY
SEE ILLUST
2
N@FUEL INJECTION PIPE & NOZZLE1
