31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

Categories Excavator Swing Gearbox
Brand Name: Belparts
Model Number: R305-9 R330-9 R290-9
Certifiion: OEM
Place of Origin: Guangdong, China
MOQ: 1 piece
Price: Negotiable price
Payment Terms: T/T, Paypal and Trade Assurance
Supply Ability: 1000pieces
Delivery Time: 1-7 days
Packaging Details: Wooden packing
Model Name: R305-9 R330-9 R290-9
Packing: Wooden Case
Part Number: 31Q8-11141 31Q9-19140
Condition: New
MOQ: 1PC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

31Q8-11141 31Q9-19140 Swing Device Excavator R305-9 R330-9

Excavator R305-9 swing drive gearbox R330-9 31Q9-19140 excavator swing device


Product name:

swing reduction

Place of Origin:

China(mainland)

Model:

R305-9 R330-9 R290-9
Part Number:
31Q8-11141 31Q9-19140

MOQ:

1 PCS

Payment term:

T/T & Paypal

Delivery time:

Within 2 days after receiving the payment

Packing:

Standard exporting packing or as required

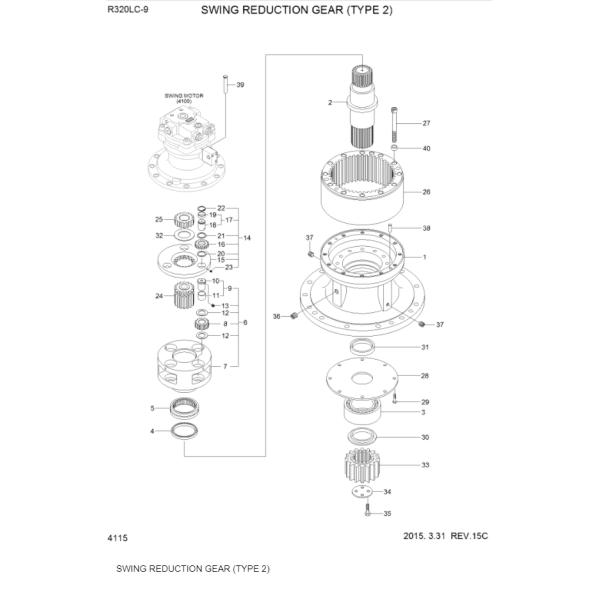

List of spare parts


Pos.Part NoQtyParts name
*-2.31Q9-19140[1]SWING REDUCTION GEAR
*-2.31Q9-19140AR[1]SWING REDUCTION GEAR
1.XKAQ-00451[1]CASING
2.XKAQ-00760[1]SHAFT-DRIVE
3.XKAQ-00146[1]BEARING-ROLLER
4.XKAQ-00149[1]SEAL-OIL
5.XKAQ-00027[1]BEARING-ROLLER
6.XKAQ-00467[1]CARRIER ASSY 2
7.XKAQ-00468[1]CARRIER 2
8.XKAQ-00469[4]GEAR-PLANET 2
9.XKAQ-00470[4]PIN ASSY 2
N10.XKAQ-00471[1]PIN 2
N11.XKAQ-00472[1]BUSHING 2
12.XKAQ-00435[8]WASHER-THRUST
13.XKAQ-00050[4]PIN-SPRING
14.XKAQ-00473[1]CARRIER ASSY 1
15.XKAQ-00453[1]CARRIER 1
16.XKAQ-00454[3]GEAR-PLANET 1
17.XKAQ-00440[3]PIN ASSY 1
N18.XKAQ-00441[3]PIN 1
N19.XKAQ-00079[3]BUSHING 1
20.XKAQ-00417[3]PLATE 1-SIDE
21.XKAQ-00416[3]PLATE 2-SIDE
22.XKAQ-00041[3]RING-STOP
23.XKAQ-00048[3]PIN-SPRING
24.XKAQ-00455[1]GEAR 2-SUN
25.XKAQ-00456[1]GEAR 1-SUN
26.XKAQ-00457[1]RING-GEAR
27.XKAQ-00466[12]BOLT-SOCKET
28.XKAQ-00626[1]COVER PLATE
29.XKAQ-00064[8]BOLT-HEX
30.XKAQ-00627[1]SPACER
31.XKAQ-00628[1]RING-SPACER
32.XKAQ-00447[1]PLATE 3-THRUST
33.XKAQ-00629[1]GEAR-PINION
34.XKAQ-00761[1]PLATE-LOCK
35.XKAQ-00756[4]BOLT-HEX
36.XKAQ-00049[1]PLUG
37.XKAQ-00066[2]PLUG
38.XKAQ-00072[2]PIN-KNOCK
N39.XKAQ-00631[4]BUSHING 2
40.XKAQ-00800[1]AIR BREATHER ASSY
1.XKAQ-00451[1]CASING
1.XKAQ-00996[1]CASING
2.XKAQ-00760[1]SHAFT-DRIVE
2.XKAQ-00997[1]SHAFT-DRIVE
3.XKAQ-00146[1]BEARING-ROLLER
4.XKAQ-00149[1]SEAL-OIL
5.XKAQ-00027[1]BEARING-ROLLER
6.XKAQ-00467[1]CARRIER ASSY 2
7.XKAQ-00468[1]CARRIER 2
8.XKAQ-00469[4]GEAR-PLANET 2
9.XKAQ-00470[4]PIN ASSY 2
N10.XKAQ-00471[1]PIN 2
N11.XKAQ-00472[1]BUSHING 2
12.XKAQ-00435[8]WASHER-THRUST
13.XKAQ-00050[4]PIN-SPRING
14.XKAQ-00473[1]CARRIER ASSY 1
15.XKAQ-00453[1]CARRIER 1
16.XKAQ-00454[3]GEAR-PLANET 1
17.XKAQ-00440[3]PIN ASSY 1
N18.XKAQ-00441[3]PIN 1
N19.XKAQ-00079[3]BUSHING 1
20.XKAQ-00417[3]PLATE 1-SIDE
21.XKAQ-00416[3]PLATE 2-SIDE
22.XKAQ-00041[3]RING-STOP
23.XKAQ-00048[3]PIN-SPRING
24.XKAQ-00455[1]GEAR 2-SUN
25.XKAQ-00456[1]GEAR 1-SUN
26.XKAQ-00457[1]RING-GEAR
26.XKAQ-00998[1]GEAR-RING
27.XKAQ-00466[12]BOLT-SOCKET
28.XKAQ-00626[1]COVER PLATE
29.XKAQ-00064[8]BOLT-HEX
30.XKAQ-00627[1]SPACER
30.XKAQ-00999[1]SPACER
31.XKAQ-00628[1]RING-SPACER
32.XKAQ-00447[1]PLATE 3-THRUST
33.XKAQ-00629[1]GEAR-PINION
33.XKAQ-01000[1]GEAR-PINION
34.XKAQ-00757[1]PLATE-LOCK
35.XKAQ-00756[4]BOLT-HEX
36.XKAQ-00049[1]PLUG
37.XKAQ-00066[2]PLUG
38.XKAQ-00072[2]PIN-KNOCK
38.XKAQ-01001[2]PIN-KNOCK
39.XKAQ-00800[1]AIR BREATHER ASSY
N40.XKAQ-00631[4]BUSHING 2
N.@[AR]NOT SUPPLIED PARTS
