Excavator E330D K5V200 hydraulic 2742490 gear pump pilot pump

Categories Hydraulic Gear Pump
Brand Name: Belparts
Model Number: E330D
Certifiion: OEM
Place of Origin: Guangdong, China
MOQ: 1 piece
Price: Negotiable price
Payment Terms: T/T, PayPal, Trade Assurance
Supply Ability: 1000pieces
Delivery Time: 1-7days
Packaging Details: Wooden packing
Model Name: E330D
Part Name: K5V200
Port: Huangpu, Guangzhou
Quality: High Guarantee
MOQ: 1PC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

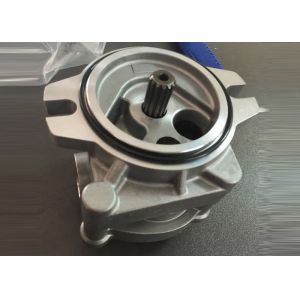

Excavator E330D K5V200 hydraulic 2742490 gear pump pilot pump

Excavator E330D K5V200 hydraulic 2742490 gear pump pilot pump


Product name

Belparts excavator

Place of Origin:

China(mainland)

Model:

E33D

Part number:

K5V200

MOQ:

1 PCS

Payment term:

T/T & PayPal

Delivery time:

Within 2 days after receiving the payment

Packing:

Standard exporting packing or as required


v

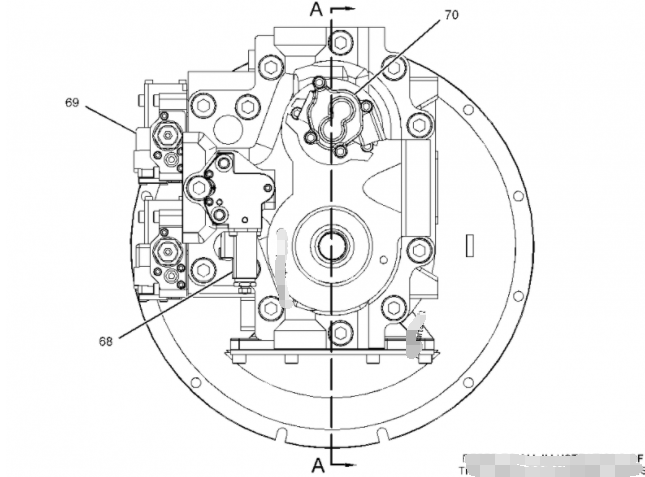

List of spare parts


#Part NoPart NameQty.Price request
22426920BOLT (M8X30-MM)8
32478985DOWEL4
42478729COVER2
52426919SETSCREW (M20X2.5X56-MM)2
68T4131NUT (M20X2.5-THD)2
76V8200BOLT-SOCKET HEAD (M12X1.75X35-MM)8
87I8166STOPPER2
91091296SEAL-O-RING2
107I8172RING-BACKUP2
112426914PISTON-SERVO2
122478712PIN AS2
137I8152SPRING-CYLINDER18
141091294SEAL-O-RING2
157I8171RING-BACKUP2
162426915STOPPER2
170950965PLUG, TAPERED11
180950966PLUG, TAPERED2
192426918NUT (M20X2.5-THD)2
202003292SETSCREW (M20X2.5X90-MM)2
212648266BOLT-SOCKET HEAD (M22X2.5X130-MM)1
222344539DOWEL2
232491306BOLT-SOCKET HEAD (M22X2.5X60-MM)10
242426916GASKET2
251105525PLUG4
261534906SEAL-O-RING (11.89MM ID)4
272959691PISTON AS2
287I8154PLATE2
292426912PLATE2
302426913RETAINER-BALL2
312478927SWASHPLATE AS2
327I8084PLUG20
337I8164ORIFICE4
342478725PLATE2
350950882PIN-SPRING4
362478786DOWEL2
372069290SEAL-O-RING9
382959695SEAL-LIP TYPE1
390950944RING-RETAINING1
402496657SEAL-O-RING1
412590833GEAR-DRIVE1
422590834GEAR-DRIVEN1
436V5204CIRCLIP - EXTERNAL1
442478718SPACER (44.5X68X3-MM THK)1
452478982FLANGE1
468T0343BOLT-SOCKET HEAD (M12X1.75X55-MM)11
478T4241RING (RETAINING)3
482478787RING-RETAINING2
492478719SPACER (50X64X3-MM THK)3
502590835BODY1
512478710BARREL AS1
522590832SHAFT-DRIVEN1
532478715BEARING-NEEDLE2
542667955BLOCK-PORT1
552478709BARREL AS1
562491307BOLT-SOCKET HEAD (M22X2.5X95-MM)2
572478713BEARING-ROLLER2
588T9080BOLT (SOCKET HEAD) (M12X1.75X20MM)8
592254516PLATE1
602496670SEAL-0-RING (ID=169.30mm)1
612478720SPACER (95X110X3.2-MM THK)2
622478717SPACER (65X90X1-MM THK)2
630950929RING (RETAINING)2
642478726COVER1
652590831SHAFT-DRIVE1
662069291SEAL-O-RING2
682254518VALVE GROUP-SOLENOID -PUMP CONTROL1
692590830HEAD GROUP-PUMP2
702742490PUMP GROUP-GEAR1
2469867SEAL-O-RING1
2478841BOLT (M10X1.5X30-MM)2
METRIC PART
SEPARATE ILLUSTRATION

Company Information


GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox. Our products have been exported to more than 100 countries and regions.


Our Factory



Exhibition


Our Advantages


  • Strong part number database.
  • If you can provide the right model and part number, we can supply the right product.
  • Professional and experienced salesperson.
  • Our founder has been in this field for more than 9 years, with rich experiences.
  • Strict and complete company rules.
  • We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
  • Good management system.
  • No matter how big or small the order, as long as customers place the order, we will provide exporting services free of charge.
  • Good service attitude.
  • As long as customers’ requirements are reasonable, we will endeavor to make them satisfied.

Hot Products

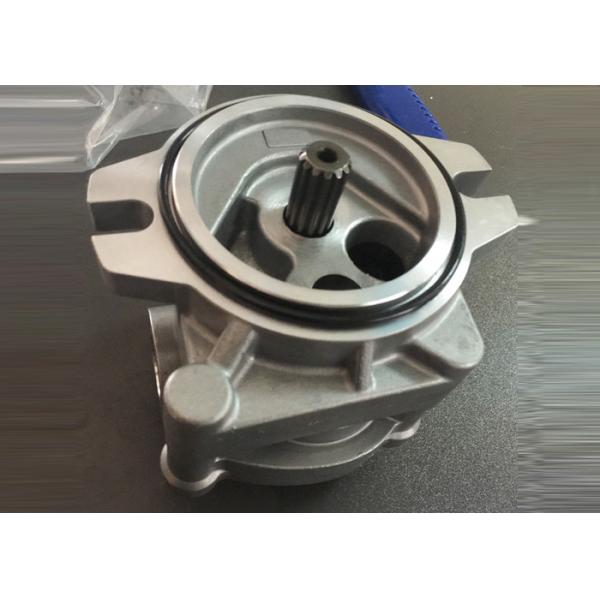

Buy Excavator E330D K5V200 hydraulic 2742490 gear pump pilot pump at wholesale prices
