| Categories | Stainless Steel liquid Sight Glass |
|---|---|
| Brand Name: | grand-mfg |
| Model Number: | 1/2",3/4",1",11/2",11/4",13/4",2" |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | $ 0.8-10 pcs |
| Payment Terms: | T/T |
| Supply Ability: | 100000/month |
| Delivery Time: | 45 work days |
| Packaging Details: | exporting packaging |
| material: | brass Hpb57-3 |
| thread: | BSP,NPT,Metric thread |
| finish: | no finishing |
| window: | temper glass,Borosilicate glass(Pyrex glass) |
| glass thickness: | 2mm-5mm |
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You
also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is
okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and
Power Transimission.

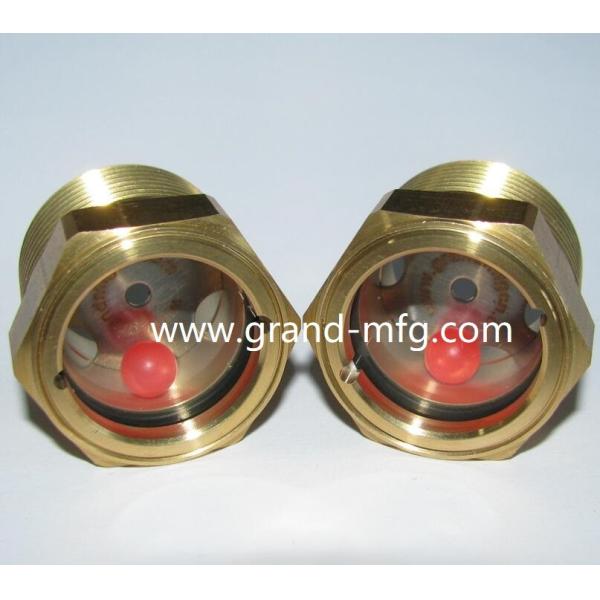

| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |

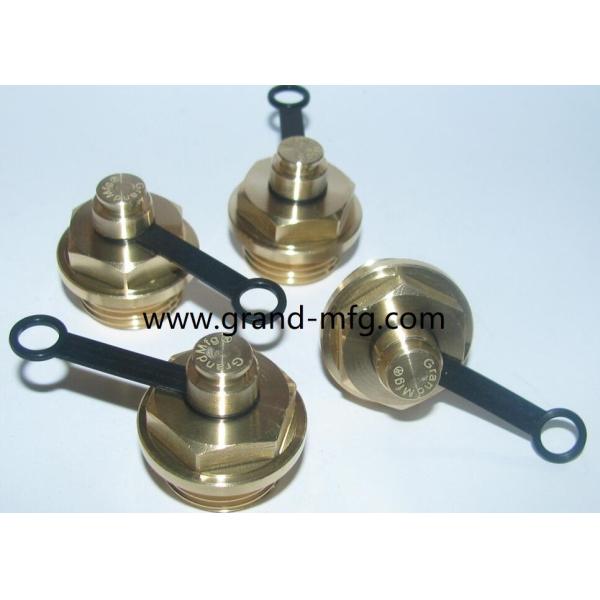

| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir,
receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item | Radiator Coolant Filler Necks & Cap |
| material | SUS304,Steel,aluminum and brass. |
| Main area used | Various brands of car,truck,etc. |
| Withstand Max Pressure | 0.6MPa,0.9MPa and 1.1MPa |
| All goods are strictly monitored and inspected from production to delivery. | |
| Transportation: Container Freight & International Multimodal Transport | |
| Packing: General exporting package or according to customers' requirements. | |
| item | steel plugs |
| material | Carbon Steel and Al 6061 |
| Thread Type | BSP,Metric,NPT |
| finish | Steel Zinc plated,Aluminum Natural and Aluminum Anodizing |
| size | Any Size OEM are welcome. |
| Usage | Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive, Truck,Pump and Power Transimission. |
| 1)Wihtstand hight pressure hydraulic plugs. 2)Covering standards of DIN, SAE, ISO, JIS and BS etc. | |
Just please contact us for checking our stocks and confirming the
specifications.
|
NPT thread 1/2" 3/4" stainless steel 304 oil sight glass without hexagon locking nut SS304 OIL LEVEL SIGHT PORT
Male BSP G1 1/4" stainless steel 304 oil sight glass with hex locking nut SS316 OIL LEVEL VIEWPORT SIGHT GLASS GAUGE
NPT 1-1/2 INCH SS304 fluid level sight glass with big viewing window pump oil sight glass oil gauge NPT 1-1/4" 2" 3" 4"
NPT 1/4"3/8" 1/2 inch stainless steel 304 316 oil sight glass SS304 OIL LEVEL SIGHT PORT fluid level view sight window
Male BSP G1 1/2" SS304 stainless steel glass oil level sight plug with locking nut food equipment glass sight viewport

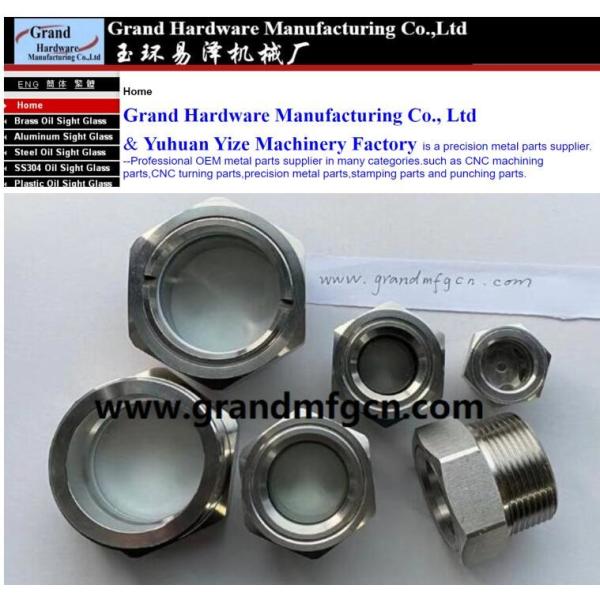

NPT thread 1 3/4" 1 1/4 inch stainless steel SS304 oil level sight glass SS316 pressure container view port sight glass
NPT2 INCH 3" SS304 Male Thread End Nut Type Equipwith big viewing window and locking nut SUS304 sight glass oil gauge
BSP G1 INCH SS304 Oil Sight Glass Level Monitor with big viewing window and locking nut SUS304 sight glass oil gauge
M33X1.5 SS304 fluid level sight glass with big viewing window and locking nut SUS304 sight glass oil gauge
BSP G2 INCH SS304 Oil Sight Glass Level Monitor With Big Viewing Window And Locking Nut SUS304 Sight Glass Oil Gauge
