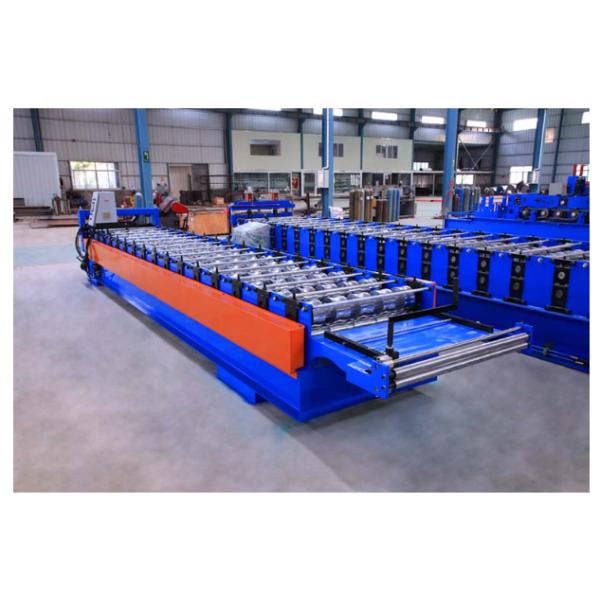

Shaft 75mm Thickness 0.3-0.8mm Metal Roofing Panel Roll Forming Machine

Shaft 75mm Thickness 0.3 - 0.8 mm Metal Roofing Panel Roll Forming Machine

1. Product parameter

2. Profile Drawing

3. The advantages of roof panel machine are as follows:

1. Low cost, light weight but high strength, short building period, and re-cycle use
2.Save material no waste
3. Easy operation, low maintenance cost
4. Able to deal with stainless material

4. Detailed Images of metal roofing panel forming machine

Machine parts

1) Metal roofing panel machine pre-cutter
Brand: BMS Original: China
With feeding material guide, avoid wasting material

2) YX22-1070 roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options
Body frame made from 350# H type steel by welding

3)YX221070 roof panel machine post cutter

Made by high quality mold steel Cr12 with heat treatment Cutter frame made from high quality 20mm steel plate by welding

hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa

4)YX22-1070 roof panel machine control cabinet

5) The Overlap Effect of Product

6) YX22-1070 roof panel Manual decoiler

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1200mm, coil ID range 508mm+30mm Capacity: 5-9 Ton

With 7 tons hydraulic decoiler for option

7) YX22-1070 roof panel machine exit rack

Un-powered, three units

5. Other details of YX22-1070 roof panel roll forming machine

PLC Control System

Touch screen brand: German Schneider Electric/ Taiwan WEINVIEW

Inverter brand. Finland VOCAN/Taiwan DELTAALPHA,

Encoder brand: Japan Koyo/OMRON

Combined with: Plc. Inverter. Touch Screen. Encoder. etc

ut-to-lengthtolerances+2 mm Control Voltage 24V

User's manual in English

After-sale service of roof panel roll forming machine
1. The warranty of roof panel roll forming machine
is two year after the client receives the machin
Within one year, we will courier the replacement parts to the client free of charg
2. We offer technical support for the entire life of our machine
3. We can send our technicians to install and train the workers in the clients factories with extra cost

Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiame
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.

BMS Machine was established in 1996, a member of BMS Group, which covers an area of more than 30000 square meters. With over 20 years of professional experience, we have been the TOP 3 manufacturer and exporter of HIGH-QUALITY cold roll forming machines in China. We are an ISO9001 approved company and have European CE certification (issued by SGS). We have the honour to serve some of the famous companies in the world such as TATA STEEL, BlueScope STEEL, LCP(a member of LYSAGHT Group of Companies), ROLL FORM GROUP LTD, etc.

We manufacture wide range products of metal sheet cold roll forming machines as follows: 1) for Metal Building Industry/PEB (Pre-Engineering Building): HAYES style quick change CZ purlin machine(including automatic and quick-change type C purlin machine and Z purlin machine), light gauge steel framing machine(LGSF, Howick and SCOTTSDALE style), roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line etc., as well as some hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc.
2) for Door and Window Industry: door frame forming machine, rolling shutter door machine, shutter door packing machine, garage door guide rail forming machine, etc.
3) for Metal Ceiling Industry: ceiling T grid machine(T-bar forming machine), ceiling furring system, drywall partition system, aluminium ceiling grilliato and strip production line, etc.
4) for Cable Tray Industry: unistrut channel forming machine, cable ladder forming machine, decorative cable channel forming machine.
5) for HVACR Industry: fire damper frame(VCD frame) forming machine CU//Z shape ventilation system frame forming machine, louvre forming machine, etc.
6) for Solar Industry: solar panel frame/solar PV structure forming machine
7) for Scaffold Industry: scaffold industry roll forming machine.
8) for Shelving and Storage Industry: shelve upright/plate roll forming production line, racking upright roll forming production line, boxed-beam roller former with connection machine.
9) for Customized Roll Forming Machines and Accessories.

We have great confidence in the quality and precision of our cold roll forming machines. Our main technology comes from Taiwan, but with China price.
Our cold roll forming machines have been exported to more than 60 countries and regions, including Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique, Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia, etc. Welcome customers from all over the world to cooperate with us on mutual benefits basis, OEM/ODM orders are also welcome. We know well the particular requirements for the customers of different countries and regions. And we have an outstanding export team who will take your requests. The design team will prepare you the perfect machines as per your specific requirements. Our experts and skilled workers complete the work with great precision.
