Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine

Categories Butyl Extruder Machine
Brand Name: Jinan Lijiang Glass Machinery
Model Number: LJTB01 Butyl Extruder Machine
Certification: CE & ISO9000
Place of Origin: China
MOQ: 1 set
Price: Discussible
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Delivery Time: 5-8 working days
Packaging Details: Wooden Cases Package and Container Transfer
Voltage: 380V 50HZ
After-sales service provided: Engineers available to service machinery overseas
Weight: 500kg
Product name: Insulating Glass Making Machine Butyl Extruder Machine
Warranty: 12 Months
Squeeze pressure: 12~16Mpa
Conveying speed: 0-30m/min
Extruding pressure: 110-160℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine

LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

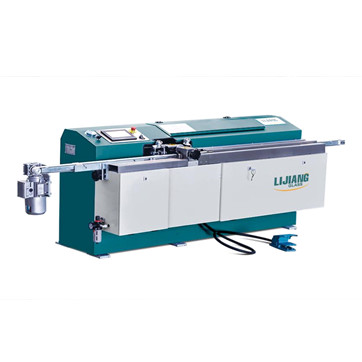

Butyl Extruder Machine LJTB 01
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment
use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency
converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with
energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. orking mode.
Butyl Extruder Machine LJTB 01
The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg

Germany Siemens spares

Germany Maximator Cylinder

Features


1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
Butyl Extruder Machine LJTB 03
Main feature
* PLC control system, touch screen interface
* Frequency control system
* Arc frame coating structure
* Imported pneumatic and hydraulic supercharging system
* Automatic centering and clamping structure
* Loading capacity up to 14KG, saving time for feeding glue
* Adopt five steps to control convey
* Preheating function,glue cylinder limit function,alarm system
* Covey and gluing mechanism adopts the latest design

Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
6A-27A
Speed
0-40m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW,50HZ
Dimension
2600×680×1100mm(L×W×H)
weight
650kg
