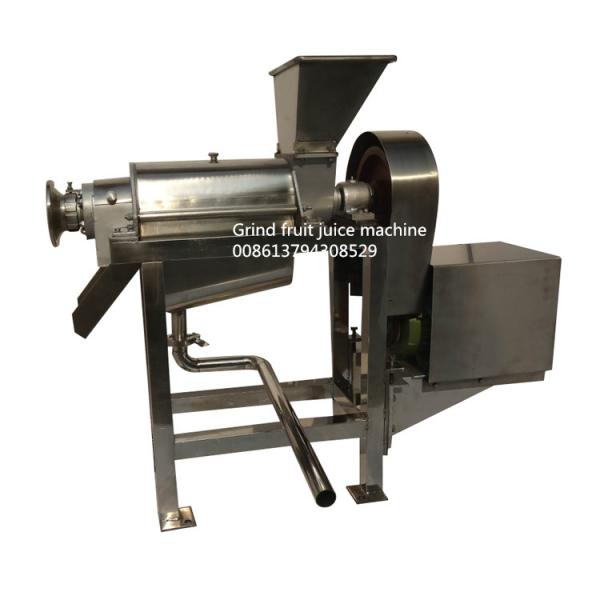

Electric 500kg/h 2.2KW Grind Fruit Juice Machine

Grind fruit juice machine

Main purpose:

mainly used for squeezing the juice of fruits and vegetables.

Structure:

It is composed of front support, feed hopper, screw, filter screen, juicer, rear support, slag trough and other parts. The screw spindle is supported in the rolling bearing, the right end is supported in the handwheel bearing, and the motor passes through a pair of V-belt pulleys. Drive the screw to work.

Working principle:​

The main component of this equipment is that the bottom diameter of the screw gradually increases along the direction of the slag outlet and the pitch of the screw gradually decreases. When the material is pushed by the screw, the volume of the screw cavity is reduced, forming a pressing of the material.

Technical parameters:

Motor power :2.2KW

Voltage :220V

Output :100-500kg/h

Spiral diameter :87.5mm

Dimensions: 1100*400*950mm

Weight about :100kg

Can be customized according to the actual situation of the customer.

any question, please contact with Cindy freely, 008613794308529, 36226571@qq.com, thanks

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
