Shitan St 400 Meters Borehole Water Well Drilling Rig Machine

Categories Water Well Drilling Rig Machine
Brand Name: Shitan
Model Number: ST-400
Certification: ISO 9001
Place of Origin: Hebei China
MOQ: 1 set
Price: USD
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/month
Delivery Time: 5 days
Packaging Details: Wooden box
Product Name: Shitan Drilling Rigs Supplier ST 400 Meters Water Well Drilling Rig Machines
Drilling depth: 400m
Drilling diameter: Φ140-Φ350mm
Dimension: 5900x2100x2850mm
Feeding type: hydraulic
One push length: 6M
Length of drill pipe: 1.5m, 2.0m, 3.0m,6.0m
Drilling pipe diameter: Φ89, Φ102mm, Φ108mm
Weight: 9.8T
Working air pressure: 1.7-3.5MPa
After-sales service provided: Video technical support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

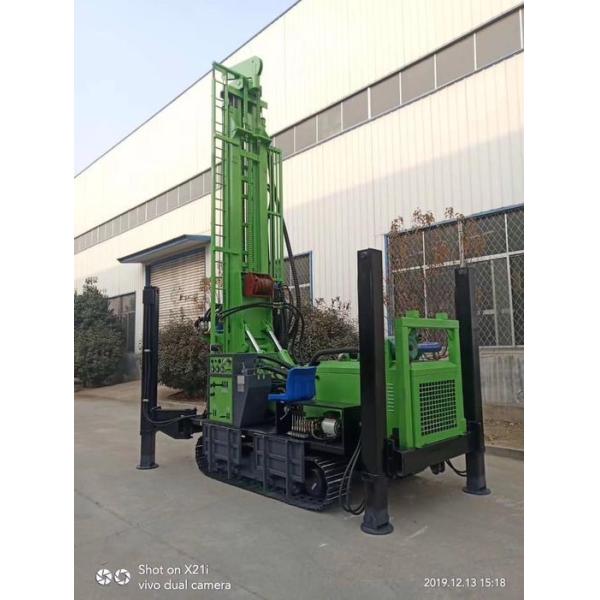

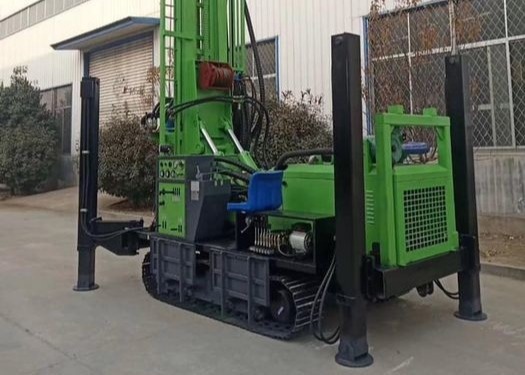

Shitan St 400 Meters Borehole Water Well Drilling Rig Machine

Shitan Drilling Rigs Supplier ST 400 Meters Water Well Drilling Rig Machines


ST 400 Meters Water Well Drilling Rig Machines Brief Introduction


This is a top drive high efficiency and multifunctional full hydraulic drilling rig. It has the characteristics of advanced structure, convenient using, high efficiency, reliable and durable.It is widely used for drilling water well, geothermal well, monitoring well, dewatering well, relief well, ground source air conditioning holes, coalbed methane, natural gas, petroleum extraction and other projects. The drilling rig can down the hole drilling with compressed air in various stratum

ST 400 Meters Water Well Drilling Rig Machines Main Parameter:


Drilling depth400m
Drilling diameterΦ140-Φ350mm
Working air pressure1.7-3.5MPa
Air consumption17-30m3/min
Drilling pipe diameterΦ89, Φ102mm, Φ108mm
Length of drill pipe1.5m, 2.0m, 3.0m,6.0m
One push length6m
Tramming speed2.5km/h
Climbing ability (Max.)30°
Ground clearance (Min.)250mm
Rotation speed45-115 rpm
Rotation torque6500-9000 N.m
Power92 Kw
Weight9.8
Dimension

ST 400 Meters Water Well Drilling Rig Machines​ Main Features


1. Full hydraulic control is convenient and flexible

2. Top drive type rotary feeding lifting
3. Multi-functional drilling
4. High efficiency
5. Low cost
6. High outrigger crawler type
7. Unique positive and negative axial pressure adjustment
8. Function of lubricator
9. Crawler mounted rig chassis
10. The second-hand machine has the highest value in the industry
FAQ of ST 400 Meters Water Well Drilling Rig Machines
1. Are you manufacturer or trade company?
We are a direct professional factory
2. What about the Minimum order quantity?
The MOQ is 1 set.
3. Could your company offer customize service to customers ?
Yes, we offer customize service.
4. What is your terms of payment?
Trade Assurance, T/T, Credit Card.
5. What is your terms of delivery?
EXW, FOB, CFR, CIF.
6. How about your delivery time?
Generally, it will take 10 -15 working days after receiving your advance payment.
It depends on the items and the quantity of your order.
7.What about the warranty time?
1 year after shipment.
