| Categories | Aluminum Alloy Door |
|---|---|
| Brand Name: | Huilv |
| Model Number: | HL |
| Certification: | ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE |
| Place of Origin: | China |
| MOQ: | 300KG |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000Tons/Year |
| Delivery Time: | Within 5-15 working days |
| Packaging Details: | Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink paper |

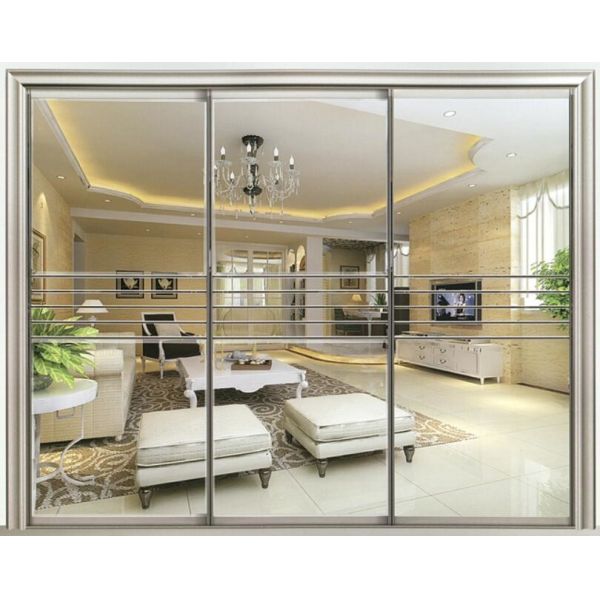

| Product name: | AA15 anodized champagne indoor lightweight aluminum alloy door |
| Profiles material: | 6063, 6061, 6005, 6060 |
| Profiles thickness: | 2mm or customized |
| Temper: | T5, T6 |
| Glass material: | lightweight, safety glass |
| Colour: | customized |
| Anodizing layer: | 10um, 15um, 20um |
| Origin: | Anhui, China |

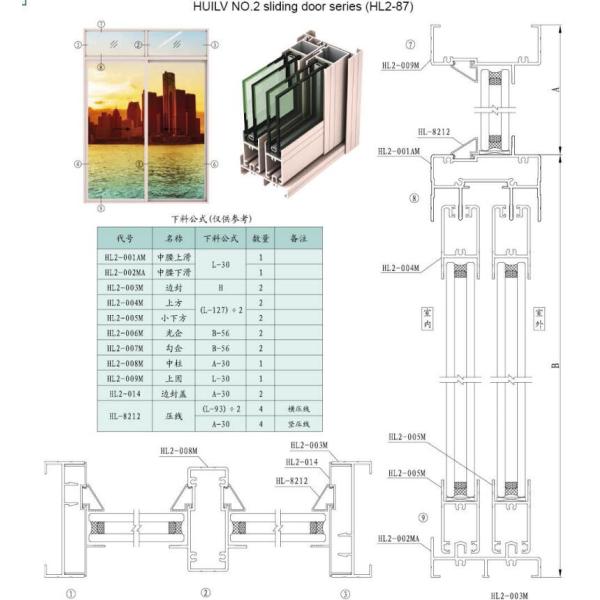

| Installation: | Assembly diagram |
| Warranty: | 10 years |
PRODUCTS DETAILS:
| Surface Treatment: | mill finish,powder coating,anodize,polish,electrophoresis,wood color |
| 8-25um for anodize, 40-120um for powder coating |
|
|
| Profiles frame thicknes |
|
Color | Anodizing colors silver(Matte), Champagne(Matte) ,bronze(Matte), black(Matte) etc. and other colors for other surface treatment |
| Payment | TT/LC |
|
|
|
|
| Supply Ability |
|
|
|
Materials:
Aluminium Alloy minerals content: 6063, 6061, 6005, 6060 Thermal
Treatment: T3-T6
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Impurity | Al | |
| Unit | Total | ||||||||||
| 6063 | (0.2-0.6)% | <0.35% | <0.1% | <0.1% | (0.45-0.9)% | <0.1% | <0.1% | <0.1% | <0.05% | <0.15% | all the rest |
| 6061 | (0.4-0.8)% | 0.7% | (0.15-0.4)% | <0.15% | (0.8-1.2)% | (0.04-0.35)% | <0.25% | <0.15% | <0.05% | <0.15% | all the rest |
| 6005 | (0.6-0.9)% | <0.35% | <0.1% | <0.1% | (0.4-0.9)% | 0.1% | <0.1% | <0.1% | <0.05% | <0.15% | all the rest |
| 6060 | (0.3-0.6)% | (0.35-0.6)% | (0.1-0.3)% | <0.1% | <0.1% | <0.15% | <0.05% | <0.1% | <0.05% | <0.15% | all the rest |
T5: After extruding aluminum profiles from the extruder, the
temperature is rapidly reduced by air cooling to meet the required
hardness (8 to 12 degrees Webster).
T6: After extruding aluminum profiles from the extruder, then
cooled by water to achieve higher hardness (over 13.5 Webster’s).
1. High corrosion resistance, high weather resistance and good wear resistance
2. Excellent material for smooth and subtle edges, elegant
appearance.
3. Lower cost.Metallic Powder Coating Colors.
4. Various colors are
available,White,Beige,Red,Green,Blue,Brown,Bronze,Grey,Black,etc..
5. Millions of different use,etc.
6. Coated with Matt Surface.
7. Coated Gloss Surface.
EXHIBITIONS:
Trade informations:
| Shipping port | Shanghai/Nanjing/Wuhu Port |
| Type of shipping | Shipment by sea or river; by road; by train; multi-transportation. |
| Payment | 30% down payment by T/T and rest beforoe shipment. |
| Shipping Term | FOB, CIF or discussed |
|
