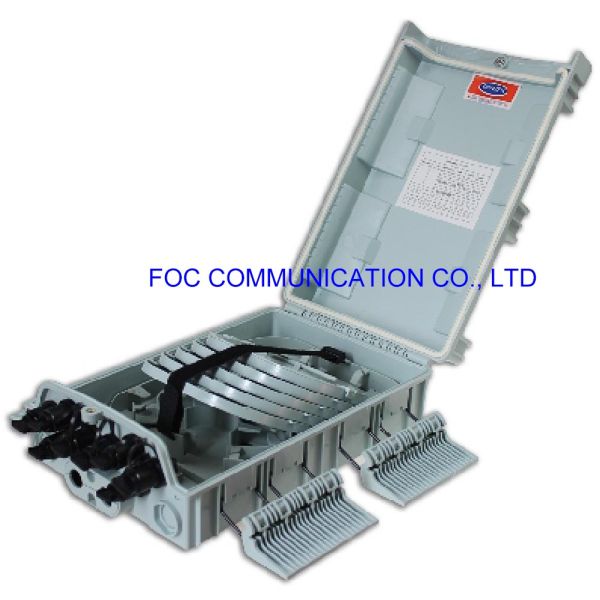

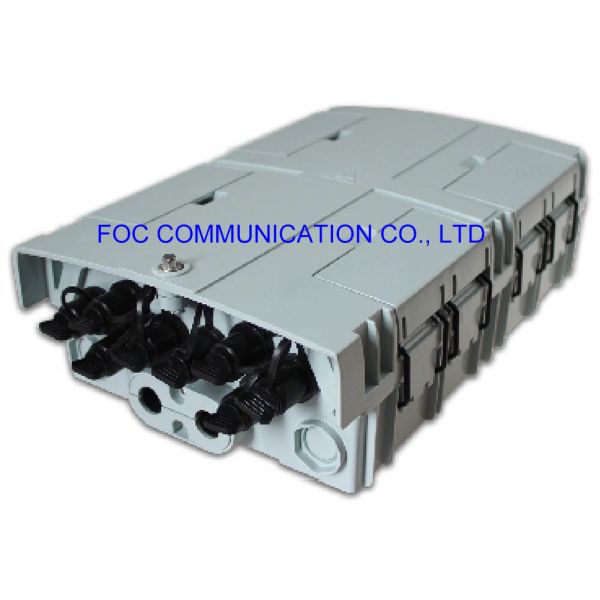

Waterproof FTTX IP65 Fiber Optic Distribution Box 8 Ports

Fiber Access Termination Box Used for FTTX Network Systems Water-proof design with IP-65 Protection level

 Fiber access termination box FATB-0408R is able to hold up to 8 subscribers. It is used as a termination
point for the feeder cable to connect with drop cable in FTTx
network system. It integrates fiber splicing, splitting,
distribution, storage and cable connection in one solid protection
box.

 Features● Waterproof design with IP-65 Protection level. ● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.  ● Plug-and-play installation, easy for maintenance and expansion. ● Integrated with splice cassette and cable management rods.  ● Fiber bend radius control more than 40mm. ● 180 degree access
wih buckled lock structure. ● 1*8 Splitter can be installed in each
splice tray as option. ● 8 pcs of pre-installed reinforced
water-proof adapter for SC. ● 1 mid-span cable entrance(10-16.5mm)
for uncut cable entrance for distribution cable gland(8-13.5mm)

 Configuration

 Fiber Access Terminal FATB-0408R Parameter

 Material

 Size

 Max Capacity

 Reinforced Adapter

 Weight

 Color

 PC+ABS

 AxBxC(mm)

 Splice 120 Fibers

 PLC splittter

 8pcs SC/UPC

 1.85kg

 Grey/Black

 340x220x95

 5 trays x 24fiber/tray

 1x8(SC)

 or 8pcs SC/APC

  Application

 ● Wall-mounted installation ● Pole-mounted installation ● Aerial-hanging installation ● Suitable for Huawei pre-connectorized drop cable with reinforced
connector.
Standard Accessories
 Splice cassette and cable management tool, installation nuts and
bolts, protection sleeves, cable tube, key, wrench, rubber seal for
cable entrance.


Optional Accessories
 Pole mounted kits
