160.3kW 90 Deg Air Horn IMPCO Mid Size Engine Mixers Low Overhead Clearance

160.3kW 90 Deg Air Horn IMPCO Mid Size Engine Mixers Low Overhead Clearance

160.3kW 90 Deg Air Horn IMPCO Mid Size Engine Mixers Low Overhead Clearance
160.3kW 90 Deg Air Horn IMPCO Mid Size Engine Mixers Low Overhead Clearance
Categories IMPCO Mid Size Engine Mixers
Brand Name: IMPCO
Model Number: 200M-2-2
Certification: UL
Place of Origin: USA
MOQ: 24
Price: Depending on quantity
Payment Terms: T/T
Supply Ability: 1200pcs per 8weeks
Delivery Time: 8 weeks
Packaging Details: carton
Product Name: Mixer
Fuel Type: LPG Vapor or Natural Gas
Mounting Position: Vertical
Diaphragm Material: Hydrin (Standard), Silicone (Optional)
HP/kW Rating: 128.0kW / 160.3kW
Flow Rate: 276 CFM / 345 CFM
MPN: 200M22
Model: Mixer
Contact Now
Company Info.
guangqing(anhui)gas technologies co.,ltd.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

160.3kW 90 Deg Air Horn IMPCO Mid Size Engine Mixers Low Overhead Clearance

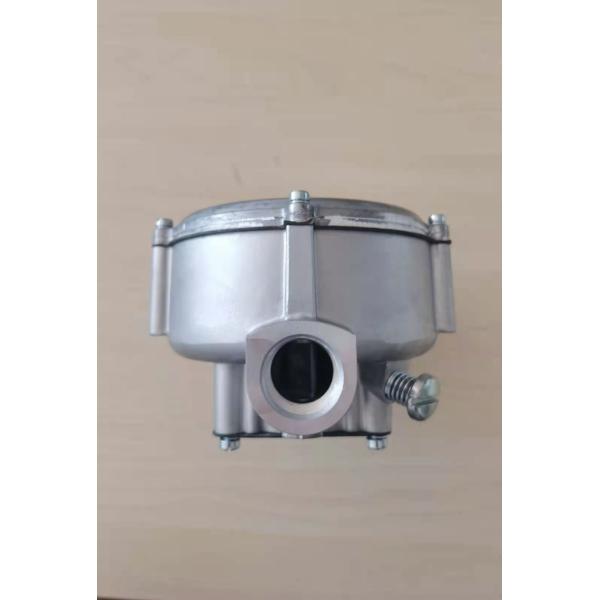

IMPCO 200M-2-2 90 DEG AIR HORN MIXER
200M-2-2 Miexr Features:
Impco part number 200M-2-2 is a single diaphragm air-valve mixer. It offers a 3-1/16"(77.8mm) 90° air inlet to provide low overhead clearance. This unit is available for LPG Vapor or Natural Gas for applications with air flow requirements up to 345 CFM (162.8 L/s). The 200M-2-2 mixer provides a convenient 1/8" balance port at the air inlet.
200M-2-2 Miexr specifications:
SPECIFICATIONS
Fuel TypeLPG Vapor or Natural Gas
Inlet Pressure-1.5” w.c.
Operating Temperature Range-40ºF to +250ºF
Mounting PositionVertical
Diaphragm MaterialHydrin (Standard), Silicone (Optional)
HP/kW Rating172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg
manifold depression
215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression

About US:

Guangqing (Anhui) Gas technologies Co., Ltd. started operating in 2008, as authorized distributor of IMPCO for over 12 years, have been providing to our customers fuel combustion system and full range of off-road &on-road parts on forklift trucks, light/ heavy- duty trucks, buses, generators. With leading quality and service, GQ have built tight bond with our customers based on a long-term cooperation, covering 90% OEM in China forklift market.
