750mm 180kN Electric Cable Pulling Winch Machine With 325hp Engine

High Voltage Power Line Stringing Equipment GS-180 Hydraulic Puller Cable Pulling Machine

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.

Quick details:

1. Tail bracket hoisting motor: American-Eton
2. Diesel: Cummins 325hp
3. Max rope diameter: 28mm
4. Max reel size: 1400mm
5. High Voltage Tansmission Line Stringing Equipment
6. Hydraulic Pulling machine
7. Main pump and motor: German-Rexroth
8. Max pull: 190kN-19Tons

Performance

1. Max intermittent pull: 190kN
2. Max continuous pull: 180kN
3. Speed at max pull: 2.5km/h
4. Max speed: 6km/h
5. Pull at max speed: 75kN

Engine

1. Diesel 325hp
2. Cooling system liquid
3. Electrical system 24V

Characteristics

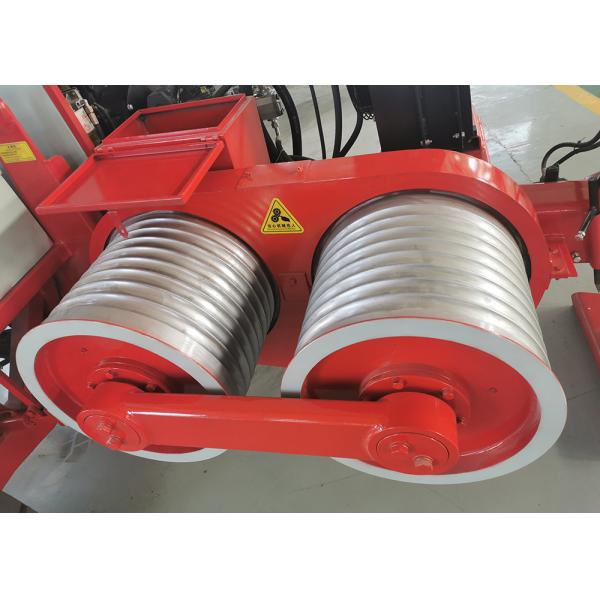

1. Bull-wheel diameter: 750mm
2. Groove number: 10
3. Max rope diameter : 28mm
4. Max diameter of coupling: 100mm
5. Electric system: 24V
6. Max diameter of rope reel: 1400mm
7. Total weight: 6700kg
8. Overall dimension (length*width*height): 5000x2300x2500mm

Main configuration

1. Engine: Cummins
2. Main pump: German-Rexroth
3. Main motor speed reducer: German-Rexroth
4. Tail bracket hoisting motor: American-Eton
5. Hydraulic meter: German

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
