| Categories | Stringing Equipment |
|---|---|
| Brand Name: | Galaxy |
| Model Number: | GL2X70 |
| Certification: | ISO9001 CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 sets/month |
| Delivery Time: | 45 days |
| Packaging Details: | Carton |
| Rated Tension: | 2x80kN / 1x160kN |
| Diesel: | 97kw(130hp) |
| Max Reverse Pulling Force: | 2x40kN/1x80kN |
| Max Conductor Diameter: | 48.75mm |
| Pull At Max Speed: | 2x40kN/1x80kN |
| Overall Dimension (length*width*height): | 5520×2280×2850mm |
| Company Info. |
| Galaxy power industry limited |
| Verified Supplier |
| View Contact Details |
| Product List |

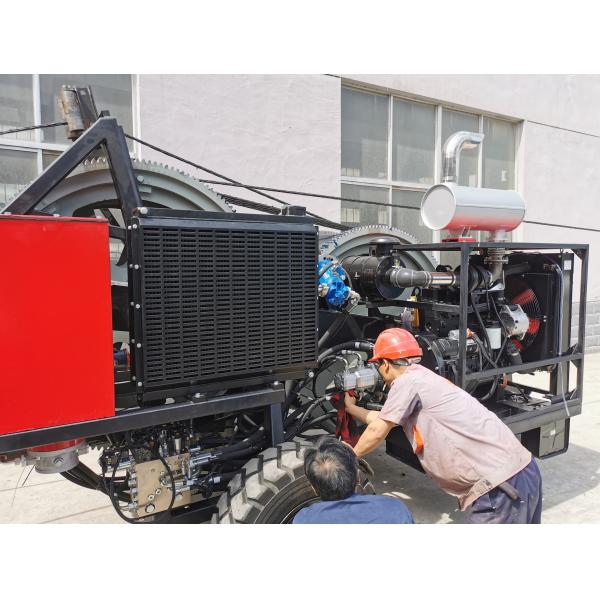

Tensioner Machine For Overhead Stringing GL2x80 Hydraulic Tensioner
The machine is suitable to string one or two ropes or bundled conductors on bull-wheels with two pair of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof interchangeable nylon sectors. The machine is completely electronically controlled.
| Max tension | 2x100kN / 1x200kN |
| Rated tension | 2x80kN / 1x160kN |
| Speed at max tension | 2.5km/h |
| Max feeding speed | 5km/h |
| Pull at max speed | 2x40kN/1x80kN |
| Max reverse pulling force | 2x40kN/1x80kN |
| Max reverse pulling speed | 3km/h |
| Bull-wheel diameter | 1850mm |
| Groove number | 2x6 |
| Max conductor diameter | 48.75mm |
| Total weight | 10000kg |
| Overall dimension (length*width*height) | 5520×2280×2850mm |
| Diesel | 97kw(130hp) |
| Cooling system | water |
| Electrical system | 24V |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Hydraulic Transmission |
| The machine can realize step less speed. |
| The machine is provided with tension presetting system. |
| Configuration |
| 2 negative self-acting hydraulic brakes |
| 2 hydraulic dynamometers |
| Hydraulic oil cooling system |
| 2 digital meter counters |
| 2 digital speed meters |
| Control instruments for hydraulic system and diesel engine |
| Rigid axle for towing at max speed of 30km/h with mechanical parking brake |
| Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor |
| Grounding connection point |
| Additional Devices |
| Lighting system for the trailer |
| 2 hydraulic rope/conductor clamp (extra charge) |
| Swivel guide rope roller |
| Trailer for towing at max speed of 30 km/h |
| Digital speed and meter counter |
| Air brake system for the trailer |
|
