Eb-250-85 Festo Bellows Cylinder Norgren Pm/31091 8.25x1

EB-250-85 Festo Bellows Cylinder Norgren PM/31091 8.25X1 Industrial Air Spring

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 89 mm

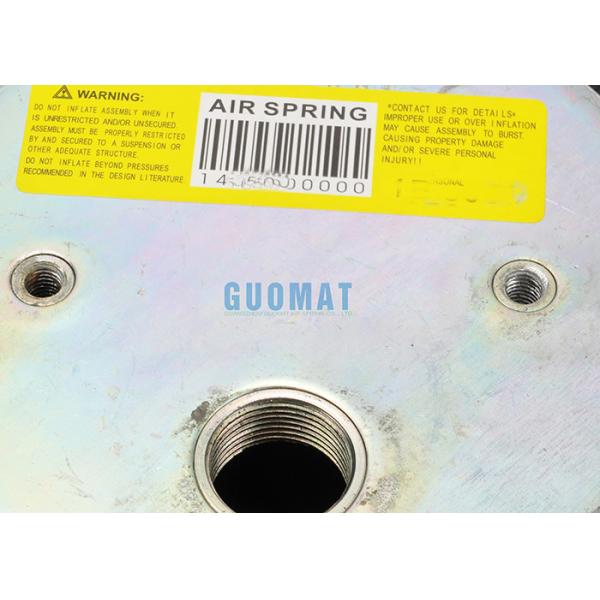

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G3/4

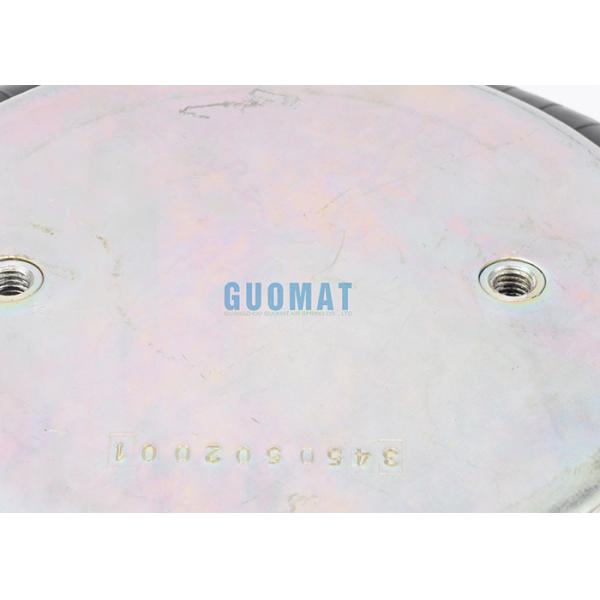

❸ Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 220 mm

Rubber Bellows Natural Height : 110 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop

OEM Original Equipment Manufacturer:

Notes:

The stroke of the bellows cylinder can be formed into a circular arc. In this case, the indicated inclination angle α must not be exceeded. During the installation process, it must be noted that the minimum height H2 cannot be lower than any height, and the maximum height H3 will not exceed any given point. The height of the center of the plate X is the decisive factor in the thrust calculation.
