| Categories | Stainless Steel Welded Pipe |
|---|---|
| Brand Name: | xinzheng |
| Model Number: | Sanitary Tube |
| Certification: | ISO,SGS,ISO & SGS,ISO/CE/SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 PCS |
| Price: | 10-20USD / kg |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000 MT PER week |
| Delivery Time: | 5-25 Days |
| Packaging Details: | Standard seaworthy export package |
| Standard: | ASME ,AISI |
| OUT diameter: | 3mm up to 600mm |
| wall thickness: | 0.5mm to 200 mm |
| Trade Name: | MONEL K500 |
| Application: | offshore platform, oil, gas, boiler |
| Type: | Welded Seamless |
| Finish: | Polished , Mill finished |
| Welding line type: | ERW , EFW, Welded |
| Length: | 6 Meters or customized,18000max. |

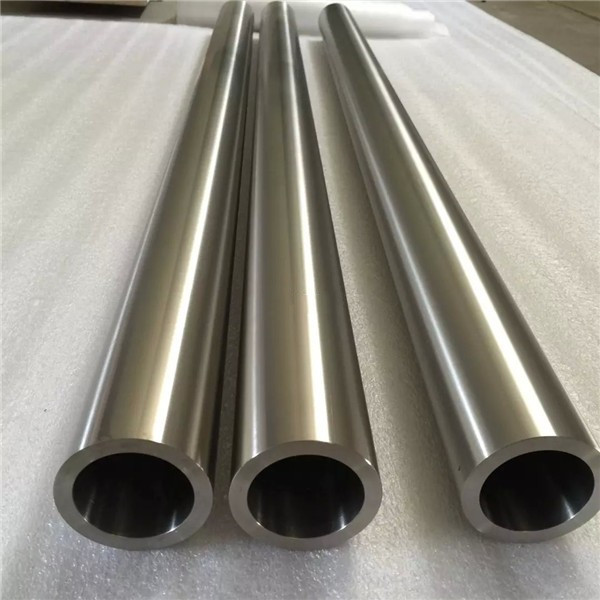

Monel 400 Pipe is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength. The presence of Monel 400 Seamless Pipe can lead to galvanic corrosion. For example if aluminum, zinc, or iron are used as Monel fasteners and then exposed to certain conditions, the Monel Bolts will quickly corrode. Monel 400 Welded Pipe (NA13, N04400) offer strength, hardness and corrosion resistance with good fabrication capabilities. Monel 400 ERW Pipe can easily be welded by gas-tungsten arc, gas metal arc or shielded metal arc processes using appropriate filler metals.
SCH40 Monel 400 Pipe is designated as UNS N04400 and Werkstoff Number 2.4360. Alloy 400 Pipe also known as Monel 400 Pipe, Monel Alloy 400 Pipe & Nickel Alloy 400 Pipe.
| Alloy 400 Pipe Specification | ASTM B 165 ASME SB 165 / ASTM B 725 ASME SB 725 |
| Alloy 400 Seamless Pipe size | 4 to 219mm W. T.: 0.5 to 20mm |
| Monel 400 Welded Pipe size | 5.0 mm – 1219.2 mm |
| Alloy 400 EFW Pipe size | 5.0 mm – 1219.2 mm |
| Monel 400 Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Monel 400 Pipe Form | Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc. |
| Alloy 400 Pipe End | Plain End, Beveled End, Treaded. |
| Monel 400 Pipe Length | Single Random, Double Random & Cut Length. |
| Marking | All Monel Alloy 400 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Monel Alloy 400 Pipe Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Our Presence | USA, Canada, Australia, UK, Malaysia, Poland, Iran, Italy, Singapore, UAE |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 |
other Stainless steel Tubing Dimension ranges :
| Product Name | Executive Standard | Dimension | Steel Code / Steel Grade |
| Industrial Pipes | ASTM A312, A358, A778, JIS G3459 | OD: 1/4"~40" | TP304, TP304L, TP316L, SUS304TP |
| WT: SCH5S~SCH80S | |||
| Tubes for Boiler and Heat-Exchanger, General Service Tubing | ASTM A249, A269, JIS G3463 | OD: 15.9~139.8mm | TP304, TP304L, TP316L, SUS304TB |
| WT: 1.6~5.0mm | |||
| Mechanical and Structural Tubes | ASTM A554, JIS G3446 | OD: 7.9~152.4mm | MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304 |
| WT: 0.5~6.5mm | |||
| Square Tubes | ASTM A554 | OD: 12.7x12.7~150x150mm | MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD |
| WT: 0.7~6.5mm | |||
| Rectangular Tubes | ASTM A554 | OD: 10x20~100x200mm | MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD |
| WT: 0.7~6.5mm | |||
| Sanitary Tubing | ASTM A270 | OD: 25.4~165.2mm | TP304, TP304L, TP316L, SUS304TBS |
| JIS G3447 | WT: 0.8~3.05mm | ||
| Large Gauge Pipes for Ordinary Piping | JIS G3448 | OD: 15.88~318.5mm | SUS304TPD |
| WT: 0.8~3.0mm | |||
| Large Diameter Pipes | JIS G3468 | OD: 14"~40" | SUS304TPY |
| WT: SCH5S~SCH40S |
Monel 400 Pipe composition & technical information
Monel 400 Pipe Yield Strength
Monel 400 Pipes Mechanical Properties
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel Alloy 400 Pipe Chemical Composition
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.24max | 28.0-34.0 | 2.50 max | 63.00 min | – |
Equivalent Grades for Monel 400 Seamless and Welded Pipes
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Alloy 400 Pipe Physical Properties
FAQ
Q: Would you provide samples For free?
A: Yes . with on stock specification We provide samples For Free .
Freight charge collect
Q: What information should i provide to source for the right
products ?
A: Material grade, width, thickness, coating and Purchase quantity
, Expected lead time ,etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin,
Qingdao, Ningbo ports, you can choose other ports according to your
needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the
price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be
delayed if the demand is extremely large or special circumstances
occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit
our factory. However, some of the plants are not open to the
public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality
before packaging, and unqualified products will be destroyed.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron
packaging and is fixed with a fumigation wooden pallet. It can
effectively protect products from corrosion during ocean
transportation.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00,
after 22:00, we will reply to your inquiry during the next working
day.
