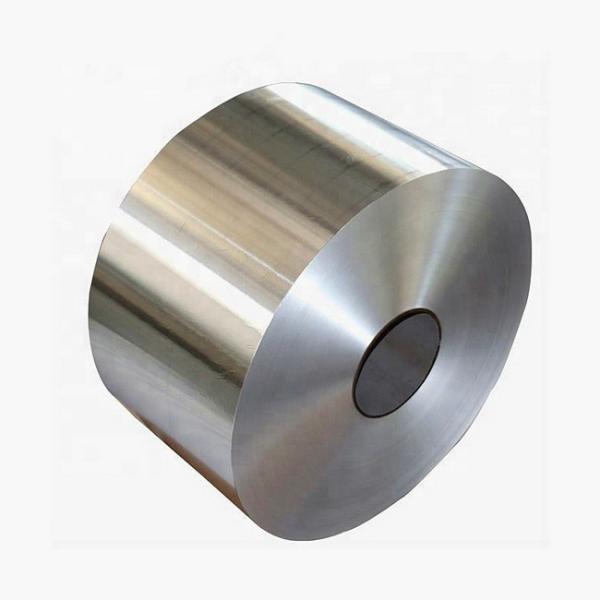

Chromating Zinc Plated Steel Sheet

JIS G 3302 2019 Minimized Spangled Z08 Chromating,Coating Galvanized Steel Coil For Profiling And Sections

Galvanized Steel Coil

Thickness: 0.14-4.5mm.
Width: 20-1500mm.
Zinc coating: 50-275g/mm2.
Tensile strength: 270-500n/mm2.
Quality standard of galvanized steel coil: JIS G3002 GB/T251B.
Grade of galvanized steel coil: SGCC (DX51D+Z), SGCD (DX52D+Z).
Surface finish of galvanized steel coil: Normal spangle, large spangle, small spangle, matte surface.
Thickness of galvanized steel coil: Of galvanized steel coil 0.18-1.20mm.
Note of the Galvanized Steel Sheet: the small order can be negotiated.
Elongation: 16-33%.
Applications: Galvanized tube/pipe, ceiling channel.
COIL WEIGHT: 3-8MT, According to Clients' requests.
Applications: building material, galvanized wire steel tape.
Standard: JIS G3312 or EN 101402, commercial quality of the Steel base.
Packing: standard export.
Applications of galvanized steel coil: Widely used for roofs, outer walls, ovens, explosive-proof steel, electrically controlled cabinets.

Galvanized Coil / GI Coil Synonyms

HDP , GI Coil , Galvanized steel coil , Galvanized Steel coil sheet , GI Steel coils sheet , GI Strips , Galvanized strips . gi coil sheet gi coil galvanized steel .gp coil sheet. gp coils galvanized steel .ga coil China, ppgi coil . ppgi coils galvanized steel. ppgi coils color. ppgi coil manufacturer. ppgi , ppgi steel , ppgi coil

Zinc Coated Galvanized Coil / GI Coil Specication ,Surface Finish, Size Range

Hot-dip Galvanized Steel Coil
	CNS 1244 2013		JIS G 3302 2019		ASTM A653M 2017	AS1397 2011	EN 10346 2015
Specifications	Hot-rolled Base:	Cold-rolled Base:	Hot-rolled Base:	Cold-rolled Base:	DS	G1~G3	DX51-52-53D
	SGHC	SGCC	SGHC	SGCC	DDS	G250	S220GD
	SGHD	SGCD	SGHD	SGCD	CS TYPE A, B, C	300	(250
	SGH	1~3	SGH	1~3	FS TYPE A, B	350	280
	340	SGC	340	SGC	SS GRADE	400	320
	400	340	400	340	33(230)	450	350
	440	400	440	400	37(255)	550	550)
	490	440	490	440	40(275)
	540	490	540	490	50(340)CLASS 1~3
		570		570	80(550)CLASS 1~3
Thickness of Base Steel (mm)	1.2~4.60	SGCD1~3: 0.27~2.0mm	1.2~4.60	SGCC,SGC340: 0.18~3.0mm;	DS: 0.27~2.0mm;	G1: 0.19~4.50mm;	DX51D: 0.19~4.50mm;
		SGCC/SGC: 0.19~2.0mm		SGCD1~3: 0.25~2.0mm;	DDS: 0.25~2.0mm;	G2&G3: 0.27~2.0mm;	S220~550GD: 0.19~4.6mm;
				SGC400, 440: 0.229~3.0mm;	CS/FS: 0.19~4.50mm;	G250~550GD: 0.19~4.6mm;	S250GD: 0.18~2.02mm;
				SGC490: 1.8~3.0mm;	SS GRADE 33~80: 0.19~4.50mm;	G300: 0.229~2.3mm;	DX52D: 0.295~2.0mm;
				SGC570: 0.229~2.2mm	CS TYPE A, B, C, Grade 33, 37: 0.18~3.0mm;	G350: 0.229~3.0mm;	DX53D, 54D: 0.25~2.0mm;
					FS TYPE A, B: 0.295~2.0mm;	G450: 0.6~3.0mm;	S280GD, S350GD: 0.229~3.0mm;
					Grade 40, 50: 0.229~3.0mm;	G500: 1.1~2.5mm;	S320GD: 0.229~2.3mm;
					Grade 55(380): 0.35~3.0mm;	G550: 0.229~2.2mm	S550GD: 0.229~2.2mm
					Grade 60(410): 0.47~1.6mm;
					Grade 65(450): 0.6~3.0mm;
					Grade 80: 0.229~2.2mm
Coating Mass:	Z08~Z60		Z08~Z60		Z90~Z600	Z100~Z600	Z100~Z350
Regular Spangle
(thickness > 0.60mm)
Minimized (Zero)
Spangle
Surface Finish	Regular Spangle, Minimized (Zero) Spangle, Extra-Smooth
Surface Treatment	Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint)
Remarks	1. Tolerance for thickness, width, flatness and so on conforms to individual product specification.
	2. All products with thickness 2.0mm and under can be skin passed.
	3. The specification for thicknesses under 1.6mm for hot-rolled base metal according to JIS G3302 will be the same as for thicknesses 1.6mm.
	4. The coil inside diameters can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm.
	5. Please make inquiries to our Sales & Marketing Division for products with special specifications.
	6. Coating mass beyond the specifications above can be provided by Yieh Corp. upon mutual agreement between customers and us.
	7. Coating mass Z08, Z09 and Z90 only apply for cold-rolled base metals.

Available Size

Product Name	Base Type	Thickness (mm)	Width (mm)
Hot-dip Galvanized Steel Coil	Cold-rolled Base	0.17~3.00	670~1650
Hot-dip Galvanized Steel Coil	Hot-rolled Base	1.20~4.60	670~1300

The table above shows the widest range of product dimensions. For a detailed

acceptable order range, please contact US.

JIS G 3302 2019 Chromating,Coating Galvanized Steel Coil Application

Galvanized steel is well suited for applications that need rust-resistant materials at a competitive price,

ultraviolet light protection and easy integration with other materials. Industries that use hot-dipped

galvanized steel products include:

Automotive
Pipe and Tubular
Outdoor Recreation
Agriculture
Construction

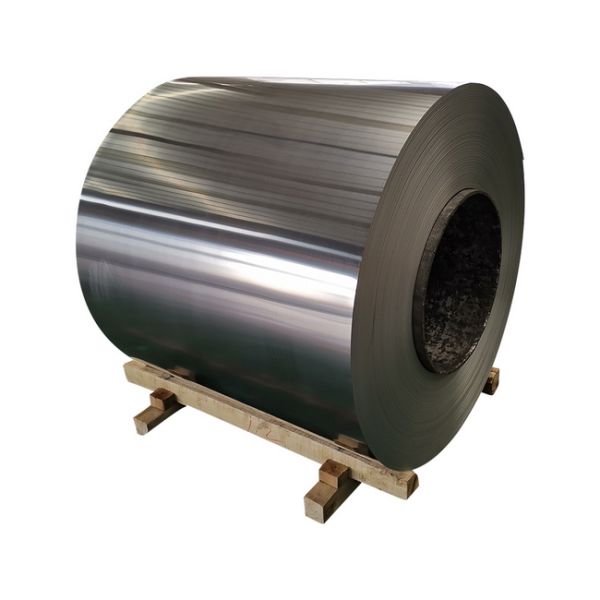

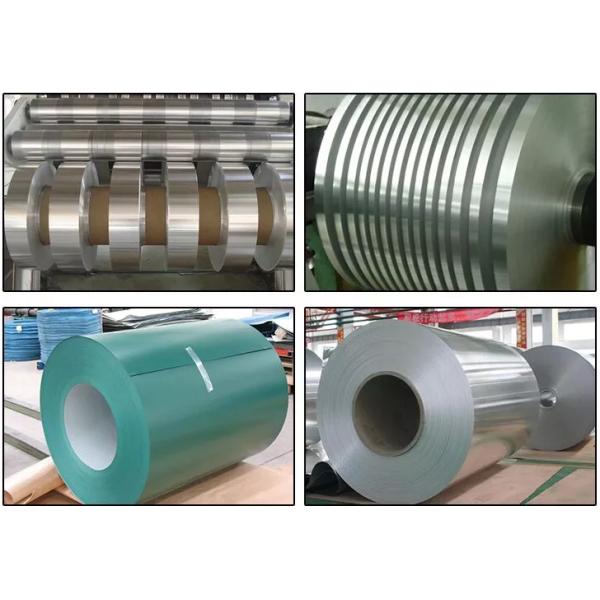

Galvanized Coil / GI Coil display and package

FAQ

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?

A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?

A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q: About product prices?

A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: How long does your delivery time take?

A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.

Product Tags:


*From:	Your email address is incorrect!
*To:	Wuxi Zhongxin Special Steel Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Galvanized Steel Coil
Brand Name:	Tisco
Model Number:	GI COIL
Certification:	ISO9001,SGS, ROHS,FDA,TUV
Place of Origin:	CHINA
MOQ:	1 MT
Price:	1000-3000 USD / MT
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4000 MT PER week
Delivery Time:	5-25 Days
Packaging Details:	The Coils Are Packed In Eye-to-sky Or Eye-to-wall Position, Wrapped In HDPE And Hardboard, Strapped With Hoop Iron And Placed On Wooden Pallets. Moisture Protection Is Provided By Silica Gel Packets.
Base Type:	Cold-rolled Base ， Hot rolled Base
Specification:	JISG 3302, SGCC, Z50-275,
Coating Mass:	Z08~Z60 ,Z90~Z600
Thickness of Base Steel (mm):	0.27mm-5mm
Surface Finish:	Regular Spangle, Minimized (Zero) Spangle, Extra-Smooth
Surface Treatment:	Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint)
Application:	doors, window hoods, gutters, downspouts, etc.
Package:	The coils are packed in eye-to-sky or eye-to-wall position, wrapped in HDPE and hardboard, strapped with hoop iron and placed on wooden pallets. Moisture protection is provided by silica gel packets.
Name:	HDP Coil ; GI COIL ; Galvanized Coil
Coil INNER Diameter:	508MM, 610MM ,405MM ,ETC
