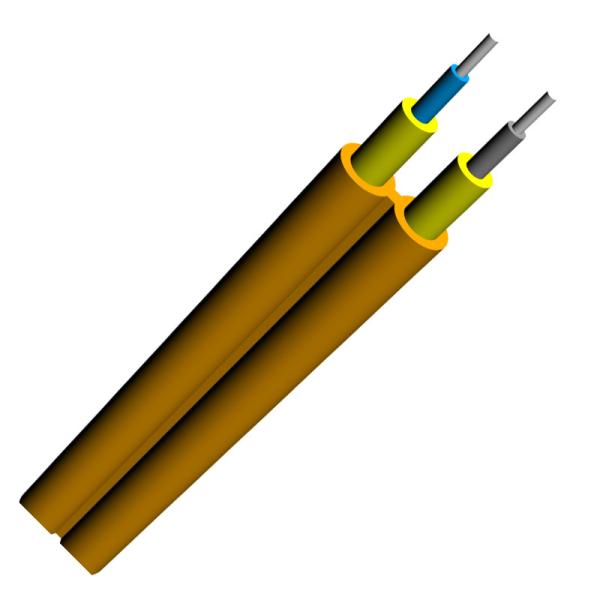

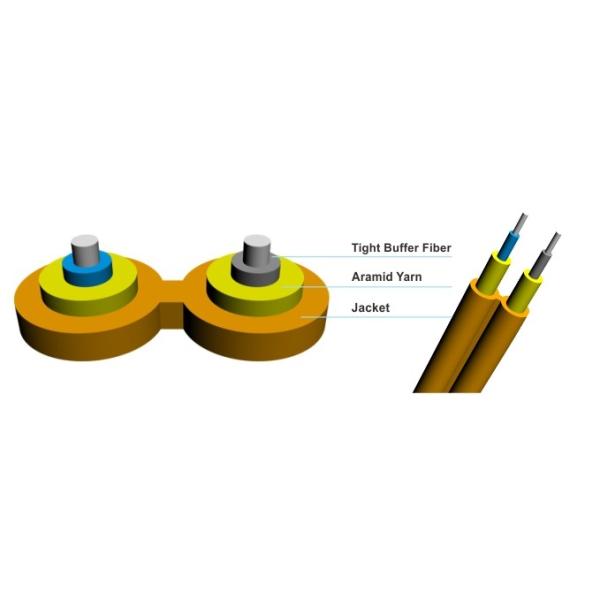

Product Construction: Fiber: 2 fibers 900um or 600um tight buffer fibers
Strength Member: Kevlar yarns
Outer Jacket: Flame resistant PVC or LSZH
Features:
- Tight buffer fiber easy of stripping.
- Tight buffer fiber have excellent flame-retardant performance.
- Aramid yarn as strength member make cable have excellent tensile strength.
- The outer jacket material have many advantages such as anti-corrosion, anti
- -water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specification
| Cable Code | Cable Diameter (mm) | Cable Weight (kg/km) | TBF Diameter (μm) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) | |||
| PVC jacket | LSZH jacket | Short Term | Long Term | Short Term | Long Term | |||
| 1.6 | (3.4±0.3)*(1.6±0.3) | 4.8 | 5.3 | 900±50 | 80 | 40 | 500 | 100 |
| 1.9 | (4.0±0.3)*(1.9±0.3) | 8.0 | 8.7 | 900±50 | 200 | 100 | 500 | 100 |
| 2.8 | (5.8±0.3)*(2.8±0.3) | 11.6 | 14.8 | 900±50 | 200 | 100 | 500 | 100 |
Note :THis datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
Application:
Widely used in FTTH access network
Telecommunication Network
CATV Networks
Data communications Networks
Local area network
Transmission equipment,Voice data
Interconnection between apparatuses
Fiber Optical Patch cord and connectors
Connection for Passive and Active Optical Component
Various indoor cabling solutions. Especially used in good laying conditions.
