EC300D EC350D K5V200DTP Excavator Hydraulic Pump Assy VOE 14625693 Main Pump

EC300D EC350D K5V200DTP EXCAVATOR HYDRAULIC PUMP ASSY VOE 14625693 MAIN PUMP

Product Description

EC300D EC300E Hydraulic Pump VOE14632316 14568923 14632316 K5V160DT K5V160DT-10SR-1E05 Hydraulic Main Pump
Model: EC300D EC300E	egory: Hydraulic parts
Brand: BELPARTS	Place of Origin: China
Condition: New	Warranty: 6 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Western Union, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS

VOE14625693 Hydraulic pump .Heavy parts EC480D EC300D Hydraulic

EC480D EC300D

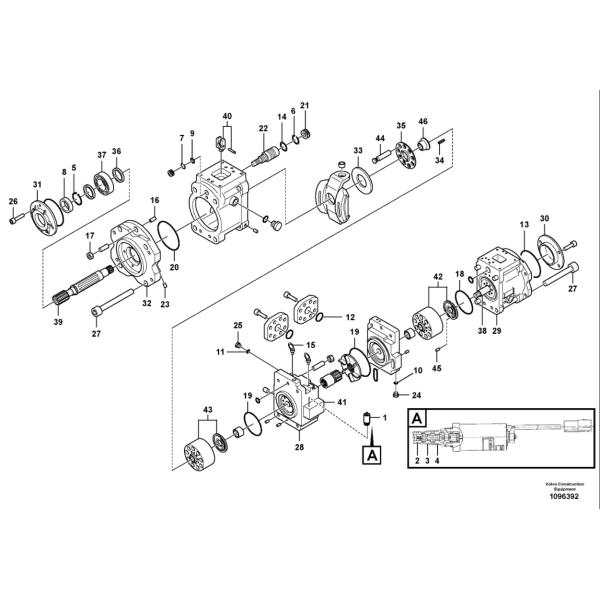

Parts on group Hydraulic pump:

Pos.	Part No	Qty	Parts name
	VOE14625693	[1]	Hydraulic pump
1.	VOE14574269	[2]	Valve
2.	VOE990546	[1]	O-ring
3.	VOE990738	[1]	O-ring
4.	VOE990547	[1]	O-ring
	VOE14596393	[1]	Seal
5.	VOE914470	[2]	Snap ring
6.	VOE14692340	[2]	Ring
7.	VOE14692341	[2]	Ring
8.	VOE14600699	[1]	Seal
9.	VOE14692343	[2]	O-ring
10.	VOE14533606	[4]	O-ring
11.	VOE14533604	[12]	O-ring
12.	VOE14533618	[1]	O-ring
13.	VOE14533617	[2]	O-ring
14.	SA7223-00690	[2]	O-ring
15.	VOE14735328	[2]	Eye bolt
16.	VOE14729945	[4]	Spring pin
17.	VOE14737981	[4]	Nut
18.	VOE14574556	[4]	O-ring
19.	VOE14533035	[2]	O-ring
20.	VOE14615353	[2]	O-ring
21.	SA7223-00420	[2]	Stop
22.	VOE14536033	[2]	Piston
23.	VOE14622108	[27]	Plug
24.	VOE14701586	[2]	Plug
25.	VOE14577795	[12]	Plug
26.	VOE14729962	[8]	Screw
27.	VOE14730972	[8]	Hexagon screw
28.	VOE14723572	[1]	Valve block
29.	VOE14723221	[2]	Casing
30.	VOE14512544	[1]	Cover
31.	VOE14692368	[1]	Cover
32.	VOE14723564	[2]	Support
33.	SA7223-00210	[2]	Plate
34.	SA7223-00180	[18]	Spring
35.	VOE14536027	[2]	Plate
36.	SA7223-00060	[3]	Spacer
37.	VOE14511980	[2]	Bearing
38.	VOE14511978	[1]	Shaft
39.	VOE14596495	[1]	Shaft
40.	VOE14536023	[2]	Pin
41.	VOE14727839	[1]	Valve
42.	VOE14563795	[1]	Cylinder
43.	VOE14563796	[1]	Cylinder
44.	VOE14594327	[2]	Piston
45.	VOE14551525	[2]	Pin
46.	VOE14510070	[2]	Bushing
	VOE14748140	[1]	Sealing kit

Product Tags:

K5V200DTP Excavator Hydraulic Pump

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	GZ Yuexiang Engineering Machinery Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Excavator Hydraulic Pump
Brand Name:	Belparts
Model Number:	EC300D
Certifiion:	OEM
Place of Origin:	China
MOQ:	1PCS
Price:	Negotiated price
Payment Terms:	Paypal,T/T and trade assurance
Supply Ability:	500 pieces per month
Delivery Time:	2-3 days
Packaging Details:	Wooden
Warranty::	6 months, 6 Months-12months
Appliion::	Crawler Excavator
Part No::	VOE14603650 14603650
Quality::	High Guarantee
Condition::	100%new
Part name::	HYDRAULIC MAIN PUMP
