Anti Corrosion IP55 32U Outdoor Communication Cabinets For Residential Area
Peltier Cooler Cooling Front Back Access 32U Outdoor Telecom Cabinet Low Noise Suitable For Residential Area
1. Outdoor Telecom Cabinet Introduction
This outdoor telecom cabinet is 32U equipment cabinet with TEC air conditioner cooling, made of galvanized steel. It can provide a stable and safe working environment for telecom equipments. And it can be used for wireless communicationstations under outdoor use conditions. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc. It adopts the front and back door opening mode, which makes the installation and maintenance of the equipment more convenient.
2. Technical parameter of outdoor cabinet
| No. | Description | Specification |
| Specification of cabinet | ||
| 1 | Model | ET7575175-EQ-2D-TEC |
| 2 | Cabinet Dimension | W×D×H 750×750×1750mm |
| 3 | Available User Space | 32U standard 19” rack |
| 4 | Door | One front door and one rear door |
| 5 | Lock | Outdoor special anti-theft three point locking |
| 6 | Material | Galvanized steel, single wall with heat insulation |
| 7 | Cabinet Installation method | Floor mount |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting | 4 ears on the cabinet base |
| 10 | Earthing | Grounding copper bar |
| 11 | Working Temperature | -40°C～+75°C |
| 12 | Protection Level | IP55 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Other accessories | ||
| 1 | Cooling | DC48V 200W TEC air conditioner |
| 2 | Fan System | Two DC48V fans with one temperature controller |
| 1 | LED light | AC220V 50Hz, with on/off button on the light |
| Packing | ||
| Wooden case | W×D×H 900×1050×2000mm | |
The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Mainly used for wireless communication base stations, including a new generation of 5G systems, integrated communications/network services, access/transmission exchange stations, emergency communications/transmissions, etc.
4. Feature
(1) The embedded structure door enhances the anti-theft effect.
(2) High quality galvanized steel.
(3) Standard 19 inch rack.
(4) High protection grade IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.
(5) The cabinet adopts three-point lock to prevent illegal entry.
(6) Hidden hinge, inside screws, enhance the theftproof.
(7) Door stopper to hold door open at service.
(8) Use TEC air conditioner and fan to keep inside temperature of the cabinet.
5. Advantage

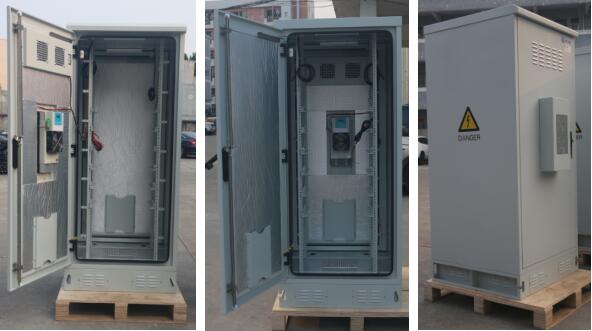

6. Cabinet display

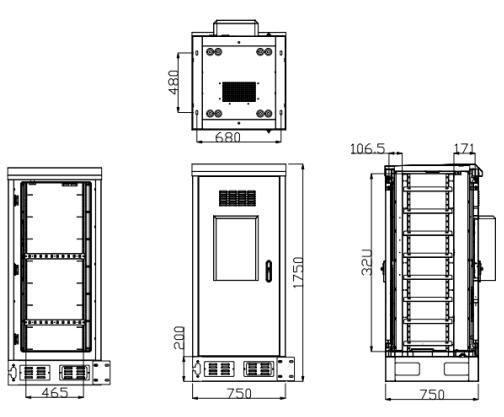

7. Cabinet Drawing
8. FAQ
Q: Are you a trading company or manufacturer?
ESTEL: We are a factory.
Q: Do you offer OEM & ODM services?
ESTEL: Yes, of course.
Q: Can support custom made?
ESTEL: Yes, we have professional technical team to design based customer’s actual demand.
Q: What' s your QC system?
ESTEL: We can provide all kinds of testing certificates, material anddimensional inspection, etc.
Q: Will our design be protected from another usage?
ESTEL: Yes, we can sign NDA with you.
Q: What' s your after-sale service?
ESTEL: If there is a quality problem, please provide photos or test reports, we will replace defective goods or return funds.

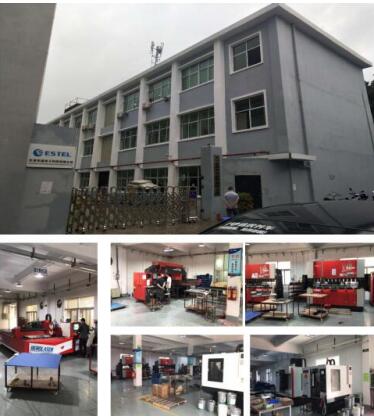

9. Factory Display
|
