Managed SFP Fiber Switch 2 Gigabit SFP 6 10/100M SFP Port

Managed Industrial Cascading SFP Fiber Switch 2 Gigabit SFP and 6 10/100M SFP ports

Technical Parameters

System Overview

The industrial managed cascading SFP fiber switch is with 2 gigabit SFP ports and 6 10/100M SFP ports. It is your best choice for smart building or fiber to desktop solution. it extends the transmission distance from 20km to 100km, easily to make the connection among master servers, repeaters, hubs, terminals. It adopts industrial design, fanless, low power consumption. The working temperature range is -40℃～85℃. The reverse polarity protection prevents from device burnt. It supports industrial standard DIN-Rail installation or wall-mounted installation, which meets the different industrial network requirements. It is widely used in the field of power, rail transit, mine, and other industrial automation fields.

Product Features

• Supporting all the network HD cameras and other network signals;
• Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
• Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
• Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
• Providing the transmission of ultra low delayed data;
• Protecting from network broadcast radiation;
• Adapting parallel or cross-wire connection;
• Support the din rail & desktop installation
• Built-in The United States Marvell and Broadcom industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.
• Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.
• Design with internal device precision compact size, in full consideration of the space requirement for installation.
• Support for ring network redundancy and RSTP, network fault self-recovery time is less than 20ms.
• Support for SNMP, provides both WEB and 0console management, easy to configure.
• Support 802.1Q VLAN, meet the requirements of Division and management of network resources to enhance network security and ability to adapt to many business applications.
• Support port isolation, port speed, broadcast storm suppression, ensure network security.
• Support for IGMP snooping, and meet the needs of multicast traffic.
• Support for port gathering, scalable connection bandwidth, and meet the needs of high-bandwidth connections.
• Supports QoS for traffic control and management, and meet the needs of different business on the Internet.
• Industry-standard design, high strength metal enclosure, IP40 protection.
• Having APC circuit, with constant optical power output and wide dynamic range;
• 1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
• Having advanced adaptive technology, no field of the use of optical or electrical adjustment
• Adapting three-level lighting protection technology on the computer ports and network signals.
• Support for high level electromagnetic compatibility protection, support electrostatic discharge immunity, radiated electromagnetic field immunity, support electric fast transient burst anti-Rejection, support the surge immunity.
• Support for a wide range of redundant dual DC power input, Power overload protection, Anti-reverse polarity protection.

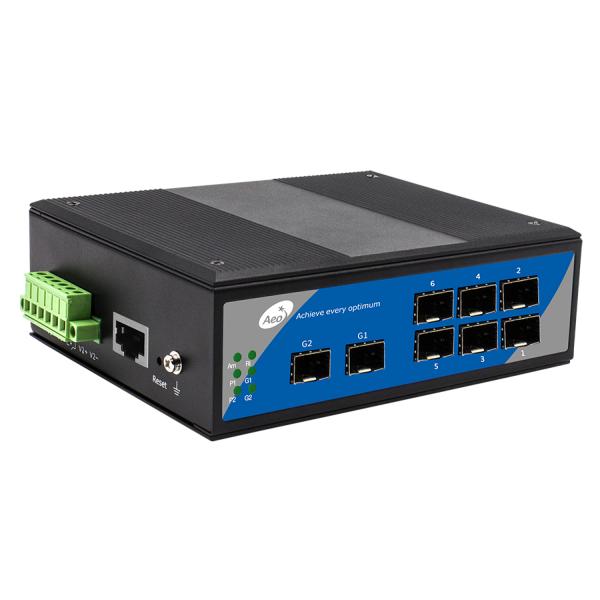

Product picture

Application Diagram

Packaging & Shipping
