| Categories | Sharp TFT LCD Display |
|---|---|
| Brand Name: | SHARP |

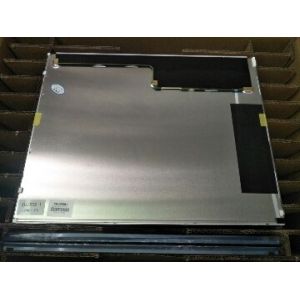

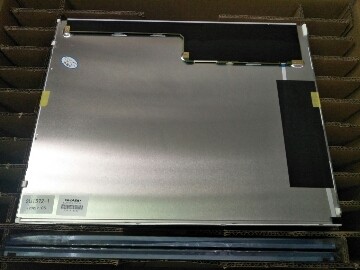

| Model Number: | LQ150X1LG96 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/WESTERN UNION/ESCROW |
| Supply Ability: | 1000PCS |
| Delivery Time: | 1-2 DAYS |
| Model Name: | LQ150X1LG96 |
| Pixel Number: | 1024(RGB)×768 (XGA) 85PPI |
| Screen Size: | 15INCH |
| Luminance: | 1050 cd/m² (Typ.) |
| Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: 0 ~ 65 °C |
| Viewing Angle: | 80/80/60/80 |
| Backlight: | WLED , 30K hours , With LED Driver |
| Signal Type: | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
LQ150 Series LQ150X1LG98 LQ150X1LG96 LQ150X1LG94 LQ150X1LG93
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 1050 (Typ.) | 80/80/60/80 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7435K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.300; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 70% | 91% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(5 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Panel Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.297×0.297 [85PPI] | 0.099×0.297 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304.128(H) × 228.096(V) | 307.2(H) × 231.1(V) | 326.5(H) × 253.5(V) | 9.6±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 950g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Typ.) | Replaceable | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHLS-TF | 1.0 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±1.2V | 1.15/1.55A (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/400mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (1 ch, 6/8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF14H-20P-1.25H(56) | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010G | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
