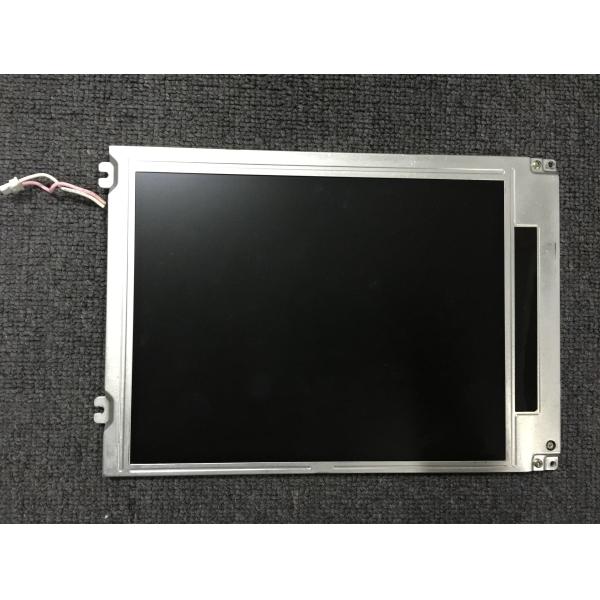

| Categories | Industrial TFT Display |
|---|---|
| Brand Name: | Kyocera |
| Model Number: | TCG104VG2AA-A00 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/WESTERNUNION/ESCROW |
| Supply Ability: | 100PCS |
| Delivery Time: | 1-2day |
| Packaging Details: | STANDARD PACKING |
| BRAND: | Kyocera |
| MODEL NUMBER: | TCG104VG2AA-A00 |
| SIZE: | 10.4INCH |
| RESOLUTION: | 640×480RGB |
| BRIGHTNESS: | 450 cd/m² (Typ.) |
| Interface Type: | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Light Source: | CCFL [2 pcs] , 50K hours , Optional |
| TEMPERATURE RANGE: | Operating Temperature: -10 ~ 70 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Information : | Brand | Model | TCG104VG2AA-A00 3 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 10.4" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.110×0.330 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.330×0.330 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 213.2(H) × 160.4(V) |
| Outline Dim.(mm) | 243(H) × 185.1(V) | Depth(mm) | 10.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 520g | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥5) | Display Mode | AWV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/9 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.310 | Display Colors | 262K (6-bit) |
| Color Temperature | 7525K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Signal Electrical : | Voltage Supply | 3.3/5.0V (Typ.)(VDD) | Current Supply | 495mA (Typ.)(3.3V) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9C-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 490V (Typ.) | Current Supply | 2.0/5.0/6.0mA (Min./Typ./Max.) | ||
| Frequency | 40/100KHz (Min./Max.) | Startup Voltage | 830/1325V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LHH | |
| Backlight Driver : | Optional | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
