| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYFXTY-12B1 |
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Place of Origin: | Guangzhou,China |
| MOQ: | 2km |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 4500KM Per Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | wooden drum |
| Fiber Type: | Single Mode G652D |
| Jacket Material: | PE |
| Strength member: | Glass Yarn |
| Cable diameter: | 5.5mm or 6.3mm |
| Color: | Black |
| Storage/Operation: | -40℃~+70℃ |
| Application: | Aerial |
| Fiber count: | 2/4/6/8/12 Core |
| Type: | Fiber Optic Cable with glass yarn |
| Length: | 2km or customized length |
| Sheath reinforcement: | FRP KFRP |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Sheath Reinforcement FRP KFRP Unit Tube G652D Fiber Optic Cable With Glass Yarn
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and
operation.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation(+20C) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
@1310nm | ≤036dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth(ClassA) | @850nm | ≤2500MHz-km | ≥2200MHz.km | ||
@1300nm | ≤1000MHz.km | ≥2600MHz-km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.15NA | |||
CableCut-off Wavelength | ≤1260m | ≤1480nm | |||

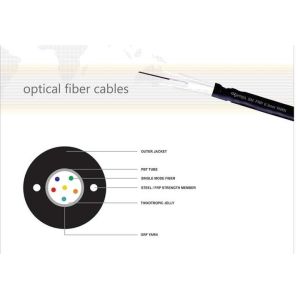

Structure and Technical Specification OF GYFXTY
Technical parameter
| Sheath reinforcement | Material | mm | FRP |
| Diameter (±0.05mm) | 1.0 | ||
| Loose Tube | Material | mm | PBT |
| Diameter (±0.05mm) | 2.0 | ||
| Thickness (±0.03mm) | 0.32 | ||
| Outer Sheath | Material | mm | PE |
| Thickness (±0.05mm) | 1.8(nominal) | ||
| color | black | ||
| Cable Weight(110.0kg/km) | kg/km | 30.6 | |
| Max Tensile Load | Short Term | N | 1000 |
| Long Term | 500 | ||
| Crush Resistance | short Term | N/100 mm | ≤1000 |
| Long Term | ≤300 | ||
| ttenuation | 1310nm | dB/km | ≤0.35 |
| 1550nm | ≤0.21 | ||
| Min.bending radius | Without Tension | mm | 10.0xCable- |
| Under Maximum Tension | 20.0×Cable- | ||
| Temperature range c℃) | lnstallation | c | -20~+60 |
| Transport&Storage | -40~+70 | ||
| peration | -40~+70 | ||
Package
Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
|
