| Categories | Tianma TFT |
|---|---|
| Brand Name: | TIANMA |

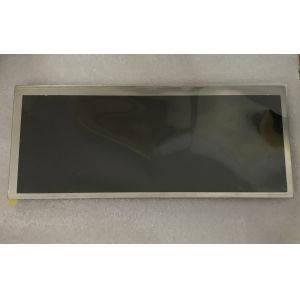

| Model Number: | TM123XDHP90 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/ESCROW/WESTERN UNION |
| Supply Ability: | 1000PCS |
| Delivery Time: | 1-2 DAYS |
| Packaging Details: | STANDARD PACKING |
| MODEL NUMBER: | TM123XDHP90 |
| BRAND: | TIANMA |
| SIZE: | 12.3INCH |
| RESOLUTION: | 1920(RGB)×720 166PPI |
| BRIGHTNESS: | 1000 cd/m² (Typ.) |
| lTEMPERATURE RANGE: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM123XDHP90 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -40 ~ 85 °C | -40 ~ 95 °C | 3.0G (29.4 m/s²) | ||
| Designed For : | ||||
| Specific Features : | ||||
| Panel Size : | 12.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.05075×0.15225 mm | 0.15225×0.15225 mm [166PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 292.32×109.62 mm | - | 311×130 mm | 8.5/15.7 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole (4 pcs) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 490g (Typ.) | Antiglare (Haze 28%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1000 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | Symmetry | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 98% | 76% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 78% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(15 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 460/600mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 10S4P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 90mA (Typ.) | 27/30/34V (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 10 pins | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 16 pcs / box | - | 600×440×280 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
