| Categories | Precision Steel Tube |
|---|---|
| Brand Name: | TORICH |
| Model Number: | DIN2391 |
| Certification: | ISO9001, TS16949 |
| Place of Origin: | CHINA |
| MOQ: | 5 tons |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 60000ton/year |
| Delivery Time: | 45-60 days |
| Packaging Details: | in bundles with seaworthy packing |
| Product name: | DIN2391-1 ST35, ST45, ST55, ST52.4 NBK Precision Steel Tube for Hydraulic Cylinder System |
| Standard: | EN10305-1 |
| Surface: | BA/Black Phosphating/Galvanizing |
| Special tube: | Precision Seamless Steel Tube |
| Technique: | Cold Drawn, Cold Rolled |
| Delivery Condition: | NBK |
| Section shape: | Round |
| Company Info. |
| TORICH INTERNATIONAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Standard: DIN2391-1
Technique: Cold Drawn, Cold Rolled.
Size range: OD: 4-76mm, WT:0.5-8mm, Length: ≤12m, or at buyer's request.
Material: ST35, ST45, ST55, ST52.4 etc
Surface quality: Without oxidization, No crack, No fold, No rolling fold, No scar, No laminar defect
Quality grades
Tubes shall be supplied in the following quality grades:
for precision steel tubes, that do not require an inspection
certificate and thus are not subject to special requirements, grade
A;
for precision steel tubes subject to special requirements, grade C.
In accordance with the stated demands of the purchaser, such
special requirements and the relevant test methods shall
be the subject of agreement.
Main feature
High precision, Excellent brightness, No oxidization on outer and inner walls after heat treatment
High cleanness of inside wall, High pressure, No deformation after
clod bending, No crack after flaring and flattening
Type of test or inspection
Tensile test, Flattening test, Drift expanding test, Measurement of
surface roughness
Dimensional check, Surface inspection, Leak tightness test,
Non-destructive test
Delivery condition
| BK (+C) Cold finished/hard | No heat treatment after the last cold forming process. |
| BKW (+LC) Cold finished/soft | After the last heat treatment there is a light finishing pass (cold drawing). |
| BKS (+SR) Cold finished/stress relieve annealed. | After the final cold forming process the tubes are stress relieve annealed. |
| GBK (+A) Annealed. | After the final cold forming process the tubes are annealed in a controlled atmosphere. |
| NBK (+N) Normalized. | After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere |
Production routing
Quality carbon steel from bao steel etc big mill, cold drawing the heat treatment without oxidization , NBK condition.
Do nondestructive testing ,HT tests and do dipping oil antirust protection, Packed tube in wooden boxes.

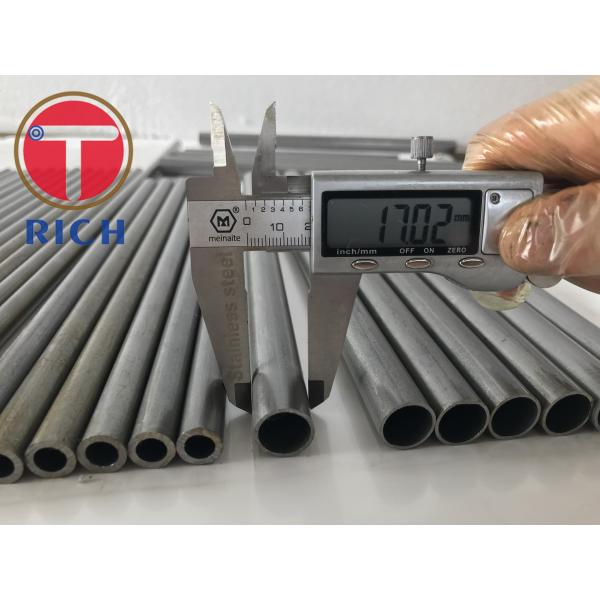

Prodcut Show of Precision Steel Tube for Hydraulic Cylinder System
Application of Precision Steel Tube for Hydraulic Cylinder System
Our Certifications
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring
Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield
Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a
perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate
longitudinal and transversal defects
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and
solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is
30-60 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it
free or extra ?
A: Yes, we could offer the sample for free charge but need pay the
cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
|
