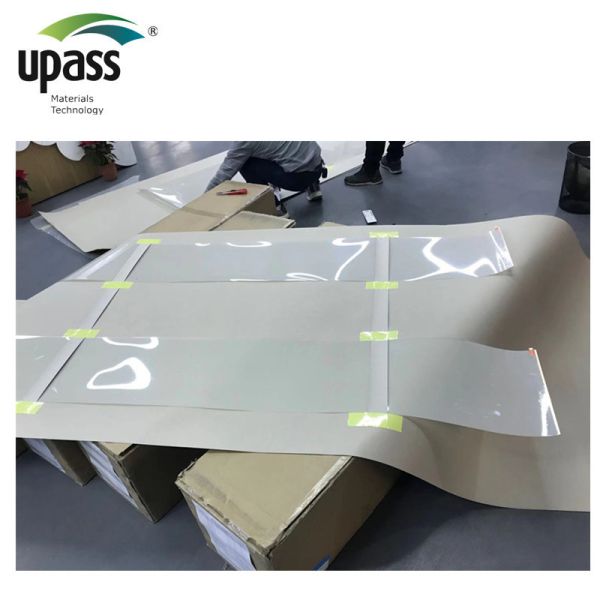

Glass Application Self-adhesive PDLC Smart Film White Color
Product Description:
PDLC (Polymer Dispersed Liquid Crystal) film, also known as
electronic dimming film, electronic curtain, etc. |
| PDLC Samrt Film is based on digital shading technology that allows the color of the film to go from non-transparent to transparent when you apply a current through it. PDLC Samrt Film will will give you the option for privacy on demand by adjusting the amount of light traveling through your window. |
Parameters:
| Item | Performance / Unit | Testing Method and Standard | |
| Rated Voltage | ON | 36/48/60(AC50HZ) | Multimeter |
| Power Consumption | ON | 4-6w/(SQM) | Multi-parameter Electrical Measuring Instruments |
| Total Light Transmittance | ON | ＞83% | GB/T 2410-2008GB/Spectrophotometer |
| OFF | ＞67% | ||
| Directional Light Transmittance | ON | ＞80% | GB5137.2-2002 |
| OFF | ＜4% | ||
| Haze | ON | ＜4% | GB/T 2410-2008GB/Spectrophotomete |
| OFF | ＞96% | ||
| Response Time | ON | ＜40(MS) | Liquid Cystal Mutl-prareter. Measuring Instrument |
| OFF | ＜210(MS) | ||
| Operating Temperature | / | -30~70℃ | Constant Temperature and Humidly Testing Machine |
| Lifetime | ON | ＞100000(H) | GB18910.5- 2008 |
Main Features:
| 1. High electric voltage resistance |
| 2. High weather resistant&No shrinkage |
| 3. Waterproof, High clearance |
4) PDLC smart film and glass is more and more widely used in modern
construction, such as window, door, bathroom, partition wall etc. |

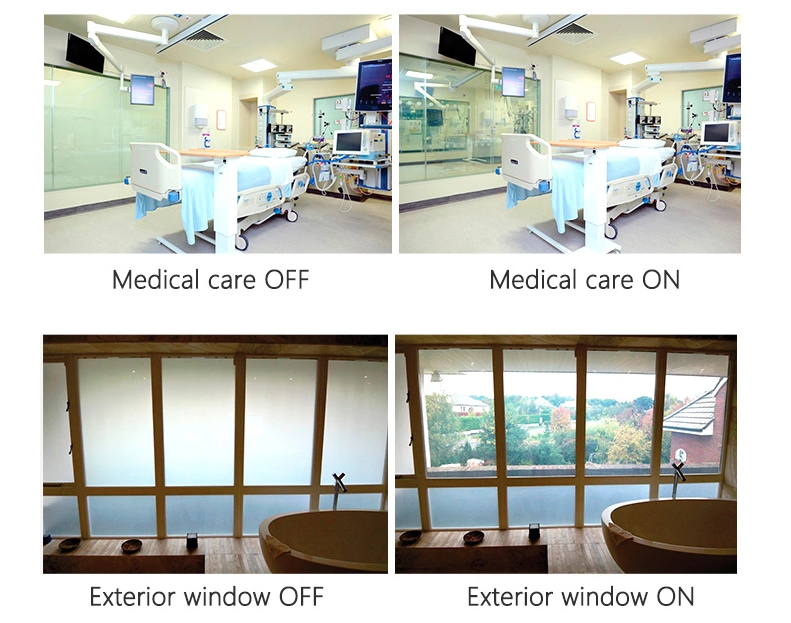

Large command and control dispatch center office, meeting room, negotiation room, special hospital room. Operating room, villa toilet. Shower room, window of entertainment room. Isolation. screen, etc..
|
Police station, Courts. Prisons. Jewelry shops. Museums. Bank Windows. Curtain walls. Counter. Isolation, etc.. Large special screen projection screen, etc..
|
|
