| Categories | Pillow Block Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | SER207 |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 20-45DAYS |
| Packaging Details: | carton,pallet |
| Clearance: | C2 C0 C3 C4 C5 |
| Application: | Machinery |
| Hardness: | HRC58-62 |
| Lubrication: | Oil or Grease |
| Cage Material: | Steel Brass Nylon Brass |
| Samples: | available |

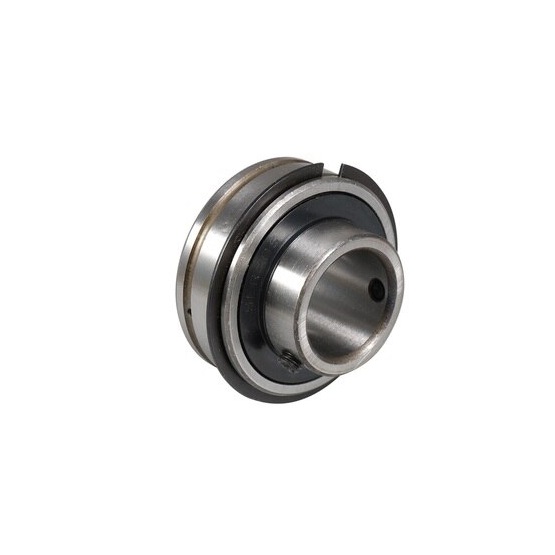

Pillow Block Bearing Metric SER Series Bearing Insert SER207
Product Description:
Pillow block bearings is a unit that combine a radial ball bearing, seal, and a housing of high-grade cast iron or pressed steel, which comes in various shapes. The outer surface of the bearing and the internal surface of the housing are spherical, so that the unit is self-aligning.
Characteristics
Large assortment of design and sizes.
High quality of design and manufacturing.
Worldwide availability.
Application
Paper machines, conveyor equipment, rotary kilns, drums, tube mills, converters, large electrical machines, rail vehicles,the mining, metallurgical, chemical industry, agriculture, transportation and other machinery.
Pillow block bearings Available Series
Housing series: FC series, P series, FL series.................
Insert bearing series: UC series, UR series, UE series
Unit set series: UCP series, UCPX series, UCF series, UCFAseries, UCFH series, UCFC series, UCFX series, UCFG series, UCFS series, UCFL series, UKF series, UKF series, UKFL series, UKFX series, UCC series, UCT series.......
model code | ID | OD | H | OH |
| mm | mm | mm | mm | |
| SER203 | 17 | 47 | 31 | 17 |
| SER204 | 20 | 47 | 31 | 17 |
| SER205 | 25 | 52 | 34.1 | 17 |
| SER206 | 30 | 62 | 38.1 | 19 |
| SER207 | 35 | 72 | 49.2 | 20 |
| SER208 | 40 | 80 | 49.2 | 21 |
| SER209 | 45 | 85 | 49.2 | 22 |
| SER210 | 50 | 90 | 51.6 | 24 |
|
