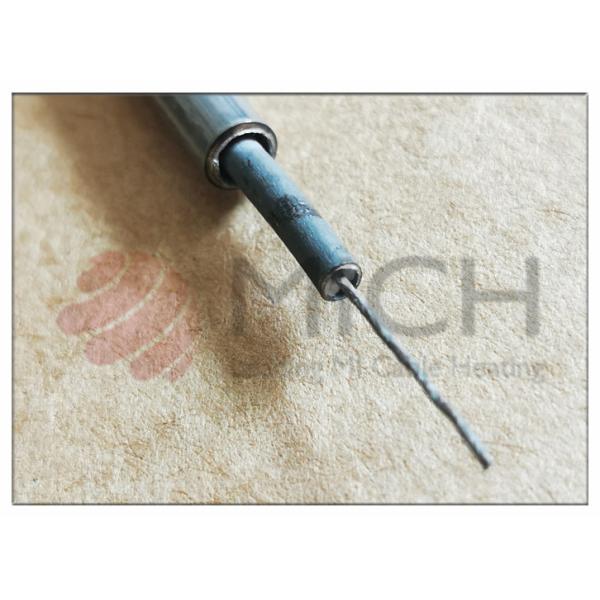

Radiation Resistant Triaxial Mineral Insulated Wire 316L Sheathed

Radiation And High-Temperature Resistant Inorganic Mineral Insulated Coaxial And Triaxial Cables

Radiation and high-temperature resistant inorganic mineral insulated coaxial and triaxial cable, due to all materials used are inorganic materials, can undoubtedly work in high temperature state, up to 1200℃. At the same time, the radiation resistance of inorganic materials is greatly higher than that of any other known organic materials, so they are widely used in nuclear power engineering.

This kind of coaxial cable, triaxial cable with different insulation materials, possess different electrical properties accordingly which can be used in different environments.

The general structure of triaxial and coaxial cables is as follows:

Stainless steel sheath

exterior insulating layer

Interior insulation layer

Triaxial cable construction

Stainless steel

conductor

Pure copper shield

Insulation materials

Stainless steel sheath

Pure copper shield

At their typical operating temperature of 550 ºC, the insulation is better than 3x10-9 amps per metre.

Features

■ Optimised geometries to minimise surface transfer impedance

■ Designed to maintain screening performance of measurement chain

■ Very high insulation resistance to minimise signal losses

■ All cable supplied fully tested

■ Maximum operating temperature of 700 ºC in high neutron flux fields

■ Dimensions and lengths can be adapted to particular applications
