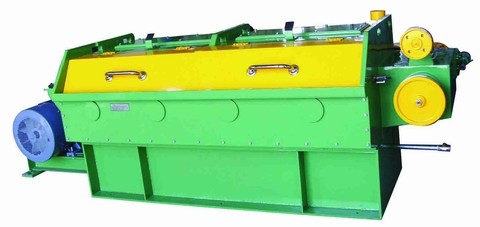

17IWD Al/CCA wire Intermediate drawing machine

1,Main technique parameter:

1. Usage: Aluminum/CCAwire

2. Inlet diameter: 3.0-3.5mm

3. Outlet diameter: 2.5mm-0.6mm

4. Maximum drawing speed: 1200m/min

5. Dies number: 17 (Customer self provided) 30mm*8

6. Mechanism surface reduce rate:

From No.1 to No.16 18%

No.17 12.5%

7. Drawing method: 4 shafts horizontal arrangement; sliding continuous drawing

8. Drive motor: 37KW/AC frequency converter control

9. Spooler motor: 11KW/AC frequency converter control

10. Frame: Ironed cast

11. Transmission: All transmission by flat belts; main motor lubricated by petroleum

12. Capstan: four-tier capstan; tungsten carbide (6 months of guarantee)

13. Lubrication system: Spray type; lubrication oil 100 liter/min (without water pump)

14. Spooler: Without shaft;

Automatically pneumatic brake when wire is broken;

Single shaft fixed with screw (manually self-lock)

Manual hydraulic unloading (with loading & unloading cart)

15. Spool dimension: 500/630mm

16. Capacity for wire receiving: 200-500KG

17. Traversing unit:

Traversing system: 90W low speed reversible motor type;

Traversing width: 480mm/Max

18. Spooling tension control: Pneumatic balance automatically controls spooling tension (pneumatic source provided by customer self)

More options

RBD-400/13 Capstan Type Aluminum rod Breakdown Machine

RBD-400/13 Aluminum rod breakdown machine is used to draw Φ9.5mm ordinary aluminum rod into Φ1.7mm-Φ4.5mm wire, Drawing capstans are arranged in a line. Fixed speed capstan and other twelve drawing capstans are controlled by two electric motors respectively. It is with quickly change dies system.

1. Main technical parameters:

1.1 Max inlet diameter: Φ9.5mm

1.2 Outlet diameter: Φ1.7mm-Φ4.5 mm

1.3 Max. drawing speed: 25m/s

1.4 Diameter of drawing capstan: Φ400

1.5 Max. No. of drawing dies: 13 dies

1.6 Size of drawing dies: Φ38×25

1.7 Max storage capacity of wire accumulator: 8m

1.8 Motor power of drawing machine : 200KW AC

1.9 Motor power of fixed speed capstan: 55KW (AC)

1.10 Motor power of dual-spool take-up: 15KW*2 (AC)

2. Components of machine:

2.1 Pay-off stand with a rotating arm: 1 Set

2.2 Host drawing machine: 1 Set

2.3 Dancer: 1 Set

2.4 Double spooler take up 1 set

2.5 wire pointer machine: 1 Set

2.6 Electric control system and console : 1 Set.

More options

Compact and cost-effective

13D/400-Aluminium rod breakdown machine

1. usage

 This machine mainly used to drawing Φ9.5mm ordinary AL- rod into
φ1.7-φ3.0mm wire.With quick change die system.
2.Quick change die system-drawing die sheet:
Inlet 9.5mm,outlet 1.7-3.0mm

Quick change die system:For example, if you want to produce 2mm, you only remove 1.95 and 1.7, and put the 2mm at final drawing die seat;If you want to produce 3mm, you remove 2.90-2.54-2.23-1.95-1.70mm, put 3mm at final drawing die seat.)
