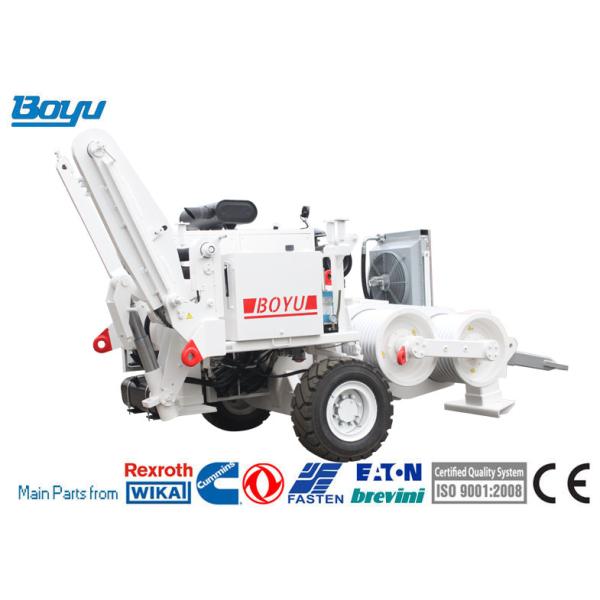

9 Groove Transmission Line Equipment 600mm Pulling Wheel Hydraulic Puller

Transmission Line Stringing Equipment Cummins 6CTA8.3-C260 Engine Hydraulic Puller

Performance parameter

Main technical performance parameter

• Max intermittent pulling force: 150kN
• Max continuous pulling force: 120 kN
• Corresponding speed: 2.5 km/h
• Max continuous tractive speed: 5 km/h
• Corresponding pulling force: 60 kN

Structure parameter

• Pulling wheel diameter: 600mm
• Groove number: 9
• Max diameter of applicable pulling rope: 26mm
• Weight: 6600kg
• Overall dimension (length*width*height): 4800*2350*2470 mm
• Hoisting mode: single point

Engine

• Type: Cummins 6CTA8.3-C260
• Model: Straight type six-cylinder pressurizing four-stroke diesel engine
• Cylinder diameter * stroke: 114*135 mm
• Total air output: 8.3 L
• Rated speed: 2200 r/min
• Rated power (one hour power): 194 kw
• Max torque: 1135Nm
• Rotary speed when maximum torque: 1500 r/min
• Fuel consumption rate (bench test): 238g/kw.h
• Cooling method: forced air cooling

Drive system

Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.

• Cooling mode: forced cooling

Main pump

• Model: sloping cam plate bi-directional plunger pump (German Rexroth)
• Type: A4VG250EP4DT1/32R-NSF02F021

Hydraulic motor

• Model: inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
• Type: A2FE180/61W-VZL106

Speed reducer

• Model: two-grade planet gear reduction (German Rexroth made by Beijing sole investment plant)
• Type: 310 L2
• Reduction ratio: 21.8
• Brake response pressure: 2.5Mpa

Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.

• System working pressure: 12Mpa
• Duplex gear pump: 1PF2G2-4X/016+014RR20MRL
• Fan motor: GM5-12-1FE13-S-20
• Hoisting motor: J2K-305
• Sleeve extension oil cylinder: 3TG110×250
• Radiator: B5024

Electric system

• System voltage: 24V
• Storage battery: 24V electric starting

Established in 1993, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery, CE certified.

We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

    1. Main configurations of our machine are from Germany and USA

• Engine: American Cummins
• Main pump: German Rexroth
• Main motor& speed reducer: German Rexroth
• Tail bracket hoisting motor: American Eton
• Hydraulic meter: German

    2. Our company have more than 25 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.

    3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.

    4. We can supply the specific components to the buyers with cost price after warranty period.
