Plastic Industry 10 20 40 80 304l Herringbone Stainless Steel Wire Cloth Woven

Categories Stainless Steel Wire Cloth
Brand Name: KUNYA
Model Number: KYF2123F
Place of Origin: CHINA
MOQ: 1 SQM
Price: USD$0.9-USD$55 per SQM
Payment Terms: Western Union, T/T
Supply Ability: 16854200 SQM per month
Delivery Time: 15-25 days
Packaging Details: wooden case
Product name: Weave Black Wire Cloth
Application: Filters
Weave style: Plain weave, twill weave ,dutch weave
Wire diameter: 14#-50#
Mesh: 1-8000 Mesh
Material: 201,202,302,304,304L,316,316L
Technique: Woven
Length: 30m per roll or as required
Width: 1.2m,1m,0.5-2m,can be customized
Usage: chemical industry
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

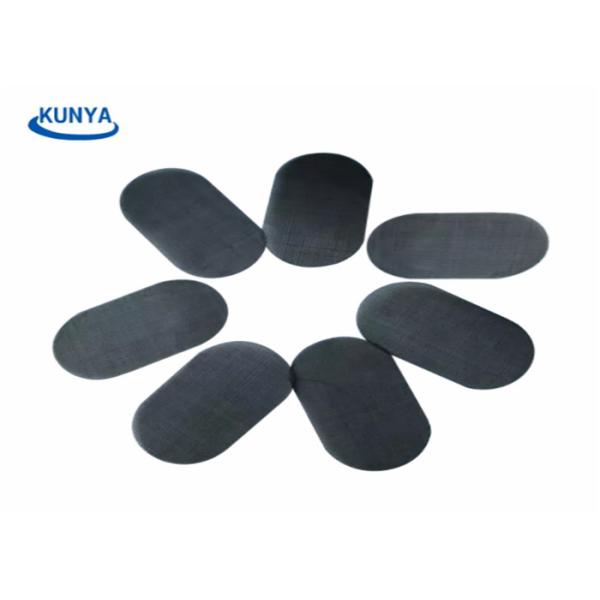

Plastic Industry 10 20 40 80 304l Herringbone Stainless Steel Wire Cloth Woven

Plastic Industry 10 20 40 80 Mesh Herringbone Weave Black Wire Cloth


NameBlack wire cloth
MaterialIt is made of low carbon iron wire
Woven typeHerringbone weave
CharacteristicsBlack wire mesh has features of uniform meshes, smooth surface, long service life, widely applications.
ApplicationBlack wire cloth is widely used in plastic industry, rubber industry, industrial filtration, oil and chemical filtration, grain industry filtration, screening of powder particles, filtration of liquid and gas. Can also be used for all kinds of mold.

Weave Black Wire Cloth Specifications

MeshWire DiameterMeshWire DiameterMeshWire Diameter
31.0mm240.19mm-0.5mm900.1mm-0.12mm
40.7mm-1.5mm260.19mm-0.4mm1000.07mm-0.14mm
50.6mm-1.2mm280.19mm-0.35mm1100.08mm-0.09mm
60.5mm-1.0mm300.15mm-0.4mm1200.07mm-0.1mm
70.5mm-0.8mm320.17mm-0.3mm1400.06mm-0.07mm
80.4mm-1.0mm340.23mm1500.06mm-0.07mm
100.3mm-1.0mm350.25mm-0.3mm1600.06mm
120.3mm-0.8mm360.15mm-0.28mm1800.05mm
140.27mm-0.7mm400.12mm-0.27mm2000.05mm-0.06mm
160.25mm-0.7mm500.13mm-0.25mm3000.03mm-0.04mm
180.20mm-0.55mm600.1mm-0.19mm4000.023mm-0.03mm
200.19mm-0.55mm700.1mm-0.15mm5000.025mm
220.21mm-0.5mm800.08mm-0.17mm6350.018mm

Weave Black Wire Cloth Application


Chemical industry: acid-base solution filtration, chemical particle filtration, corrosive dust filtration, magnetic filtration Petroleum: petroleum purification, petroleum slurry filtration, impurity Medicine: Chinese medicine medicine filtration, solid particle filtration, medicine purification. Electronics: circuit board structure frame, original electronic equipment, acid-base battery, radiation protection module. Printing: ink filtration, toner filtration, toner purification Machinery: Vibration screening abrasive, battery materials, silicon powder and other solid particles classification.
