Wireline Hay Pulley Wellhead Slickline Pressure Control Equipment

Categories Wireline Pressure Control Equipment
Brand Name: Ruixin
Model Number: 12 inch 14inch 16inch 20inch
Certification: API
Place of Origin: China Baoji
MOQ: 1
Payment Terms: T/T
Supply Ability: 1 set 3 weels
Delivery Time: 3-4 weeks
Packaging Details: Wooden Box
Name: Wireline Hay Pulley Wellhead Wireline Pressure Control
Sheave Size: 12inch~20inch
Material: Cast aluminum
Operation: Wireline operation and slickline operation
Use: Well intervention
Wireline PCE: Wireline Hay Pulley
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wireline Hay Pulley Wellhead Slickline Pressure Control Equipment

Wireline Hay Pulley Wellhead Slickline Pressure Control Equipment


I.information

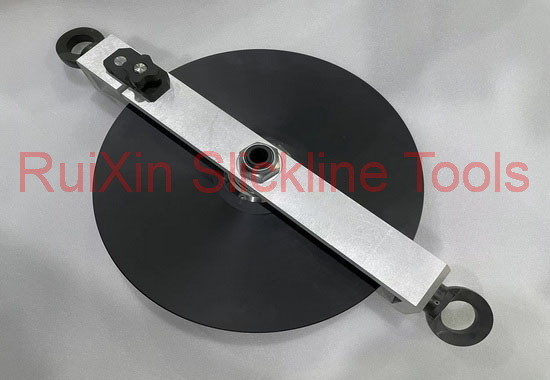

Hay Pulley is used to control and manipulate the direction of the wireline or braided cable from a horizontal positon to a vertical position en route to the stuffing box from the wireline unit. This tool is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.

Hay Pulley is used to control and manipulate the direction of the wireline from a horizontal positon to a vertical position en route to the stuffing box from the wireline unit. This tool is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.

The hay pulley is used to pull the wire or cable ( braided cable ) from the top of the lubricator to the drum surface of the wire or cable, so that the tension point of the wire or cable (braided cable ) is moved from the top to the production tree, thus reducing the tension load of the wire or cable

(braided cable ) side and preventing the damage of the lubricator from being bent. The hay pulley can also be lifted to change the direction of the load on the wire or cable (braided cable ).

II.Main parameter

SizeWire sieSafe working load
12"
TBA.
14"7/32" 5/16"
16"7/32" 5/16" 15/32"20KN
Welcome to contact us at any time.
