| Categories | Wireline Tool String |
|---|---|
| Brand Name: | Ruixin |
| Model Number: | 1.5inch 1.875inch 2inch 2.125inch |
| Certification: | API |
| Place of Origin: | China Baoji |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Delivery Time: | 2-3 weeks |
| Packaging Details: | Wooden Box |
| Supply Ability: | 1 set 2 weeks |
| Name: | Wireline Stem Weight Bar Wireline Tool String |
| Size: | 1.25inch 1.5inch 2.125inch 2.5inch |
| Fishneck O.D.: | 1.187inch-2.313inch |
| Connections: | 15/16UN 1-1/16UN 1-9/16UN |
| Length: | 24inch 36inch 60inch |
| Company Info. |
| Ruixin Energy Equipment |
| Verified Supplier |
| View Contact Details |
| Product List |

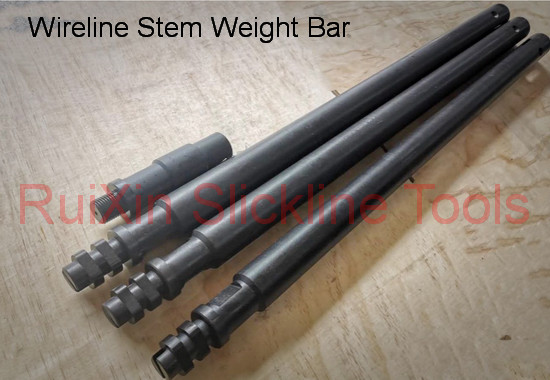

24 Inch 36 Inch Wireline Roller Stem Weight Bar Slickline Tools
Wireline Stem Weight Bar Wireline Tool String
Wireline Stem sometimes called Sinker Bar provide the mass required in wireline operations and also
enable the toolstring to fall against the differential pressure acting on the cross section of the wireline
and friction at the wireline stuffing box.
Stems are essentially round bars provided with pin connections and fishing necks at one end and box
connections at the lower ends

| Stem O.D | Fishneck O.D. | Connections | Length |
| 1.25" | 1.187" | 15/16UN | 24" |
| 1.25" | 1.187" | 15/16UN | 36" |
| 1.25" | 1.187" | 15/16UN | 60" |
| 1.5" | 1.375" | 15/16UN | 24" |
| 1.5" | 1.375" | 15/16UN | 36" |
| 1.5" | 1.375" | 15/16UN | 60" |
| 2.125" | 1.75" | 1-1/16UN | 24" |
| 2.125" | 1.75" | 1-1/16UN | 36" |
| 2.125" | 1.75" | 1-1/16UN | 60" |
| 2.5" | 2.313" | 1-9/16UN | 24" |
| 2.5" | 2.313" | 1-9/16UN | 36" |
| 2.5" | 2.313" | 1-9/16UN | 60" |
Tools can be manufactured to any size required.
Welcome to contact us at any time.
|
