| Categories | Shipbuilding Steel Plate |
|---|---|
| Brand Name: | Gnee |
| Model Number: | ABS |
| Certification: | SGS |
| Place of Origin: | Tianjin |
| MOQ: | 10 Ton |
| Price: | $1,700.00 / Ton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000 Ton/Tons per Month |
| Packaging Details: | Seaworthy packing or according to customer's requirements. |
| Application: | Ship Plate,Container Plate |
| Technique: | customers' requirements |
| Type: | Steel Plate |
| Standard: | ASTM,GB,AISI,JIS,BS |
| Length: | 1000-12000mm |
| Surface treatment: | Coated,Galvanized |
| Grade: | AH36 |
| Width: | 0.6m-3m or as required |
| Special use: | shipbuilding steel plate |
| Thickness: | 8mm-400mm |
| Product name: | ah36 shipbuilding steel plate marine steel plate |
| Surface: | Common/Blasted and Pinted |
| Shape: | Plate |
| Color: | Customized |
| Name: | Hot rolled steel plate for building |
| Packing: | Waterproof paper |
| Company Info. |
| Gnee Steel (tianjin) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

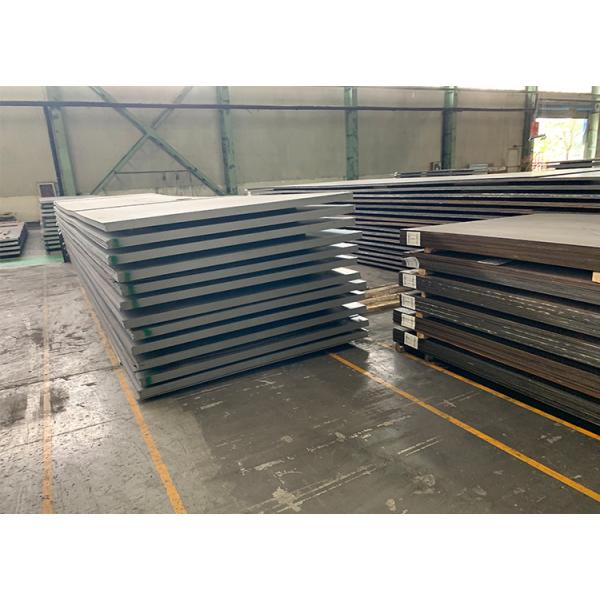

ABS high strength shipbuilding steel plate sheet
Product Name | ah32 marine steel plate |
Length | 4m-12m or as required |
Width | 0.6m-3m or as required |
Thickness | 0.1mm-300mm or as required |
Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
Technique | Hot rolled |
Surface Treatment | Clean, blasting and painting according to customer requirement |
Thickness tolerance | ±0.1mm |
Material | AH32 |
Application | It is mainly used to make structural parts such as car girder,
beam, transmission shaft and car chassis parts, which can reduce the
weight of the parts. |
MOQ | 25tons.We also can accept sample order. |
Shipment time | Within 15-20 workdays after receiving deposit or L/C |
Export packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
Capacity | 250,000 tons/year |
There are shipbuilding steel plate with nine countries classification society. This shipbuilding steel plate is divided into general strength structural steel plate and high strength structural steel plate.
Application | Shipbuilding steel plate | ||
Classification Society | CCS, ABS, GL, BV, DNV, NK, LR, KR, RINA | ||
Grade | Ship plate: A,B,D,E,AH32, AH36, DH32, DH36, EH32, EH36 | ||
Thickness | 6-200mm | ||
Width | 1800-4000mm | ||
Surface | Commonly mill finished surface or shot blasting and painting | ||
Ah32 steel plate Chemical Composition %
Grade | C max | Si max | Mn | P max | S max | Als min | Ti max | Cu max | Cr max | Ni max | Mo max |
| AH32 | 0.18 | 0.50 | 0.90-1.60 | 0.035 | 0.035 | 0.015 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 |
Ah32 steel plate Mechanical Property
Grade | Rm (MPa) | Re(MPa) min | A% min | Akv/J min | ||||||
| AH32 | 440-570 | 315 | 22 | E.T °C | Thickness (mm) | |||||
| 0 | ≤ 50 | >50-70 | >70-100 | |||||||
| L | C | L | C | L | C | |||||
| 31 | 22 | 38 | 26 | 46 | 31 | |||||
Furthermore, to address the need to build lighter ships, improve
construction efficiency, and lower life cycle cost, Anhuilong Steel
also develops and commercializes a variety of special,
high-performance, steel plate products.
Standard seaworthy package:
1. Plywood case or steel frame for outer packing;
2. Water proof plastic bags for inner packing.
Q1. Where is your factory ?
A1: Our company’s processing center is located in Tianjin, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Iran, Turkey, Jordan,India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
|
