| Categories | Wireline Pulling Tool |
|---|---|
| Brand Name: | Ruixin |
| Model Number: | 2inch 2.5inch 3inch 3.5inch 4inch |
| Certification: | API Q1 |
| Place of Origin: | China Baoji |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 set 2 weeks |
| Delivery Time: | 2-4 weeks |
| Packaging Details: | Wooden Box |
| Name: | Wireline Dovetail Slip Type Bulldog Spear Wireline Pulling Tool |
| Material: | Alloy Steel&Nickel Alloy |
| Size: | 2inch 2.5inch 3inch 3.5inch 4inch |
| Fish Neck: | 1.375inch 1.75inch 2.313inch 3.125inch |
| Body O.D: | 1.84inch 2.19inch 2.69inch 3.65inch |
| Function: | To perforate standard and heavy wall tubing under pressure |
| Connection: | SR,QLS,BLQJ,HDQRJ |
| Company Info. |
| Ruixin Energy Equipment |
| Verified Supplier |
| View Contact Details |
| Product List |

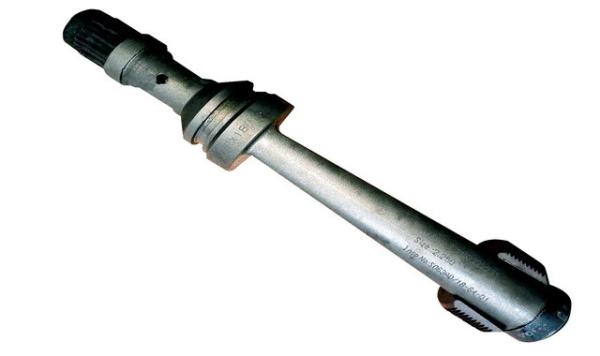

Wireline Dovetail Slip Type Bulldog Spear Wireline Pulling Tool
Introduction
Wireline Dovetail Slip Type Bulldog Spear Wireline Pulling Tool is a variable catch internal spear used to
retrieve a lost cylindrical fish from the well bore.
General Technical Parameters
Nominal OD. | Actual O.D. | Fishing Neck | Top Connection | To Catch Diameters | PN. |
| 2＂ | 1.810＂ | 1.375＂ | 15/16UN | 1-1/8″-1-7/8″ | |
| 2.5＂ | 2.250＂ | 1.75＂ | 1-1/16UN | 1-7/8″-2-1/2″ | |
| 3＂ | 2.625＂ | 2.313＂ | 1-1/16UN | 2-1/4″-2-7/8″ | |
| 3.5＂ | 3.110＂ | 2.313＂ | 1-1/16UN | 2-5/8″-3-1/8″ | |
| 4＂ | 3.625＂ | 2.313＂ | 1-1/16UN | 3-1/8＂-3-3/4＂ |
Structure characteristics
A complete range of slips is available for each size tool.To operate simply run into the fish and
set down weight,pick up,and retrieve the fish.(This spear usually requires a positive shoulder to
sit down on).To release from the fish simply down to shear the pin.The spear will then automatically
release.
Welcome to contact us at any time.
|
