Name: 12mm Diameter Electronic Alarm PCB Panel Mounting Piezo Passive Buzzer Sounder
Brand: TAIMI
Price: 1 USD

Home > Electronic Signs >

12mm Diameter Electronic Alarm PCB Panel Mounting Piezo Passive Buzzer Sounder

Categories	Electronic Alarm Buzzer
Brand Name:	TAIMI
Model Number:	TM-12095 3V 5V 9V 12V magnetic buzzer
Certification:	ISO9001、ISO14001、IATF16949
Place of Origin:	CHINA
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	1000000/month
Delivery Time:	10~15days
Packaging Details:	safe packaging
Rated voltage (vp-p):	DC3V 5V 9V 12V
Function:	Alarm sound buzzer
Min Sound Output:	90dB 5VDC/30cm
Type:	Electromagnetic buzzer
Main body diameter:	30mm
Height:	9.5mm
Current consumption (maximum):	max.30mA
Output sound pressure (minimum):	min.90dB
Operating temperature:	-20°C to +60°C
Storage temperature:	-30 ° C to +70 ° C
Material:	ABS
Color:	Black

Contact Now

Add to Cart

Company Info.

TaiMi(Shenzhen) electronics technology Co.,ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

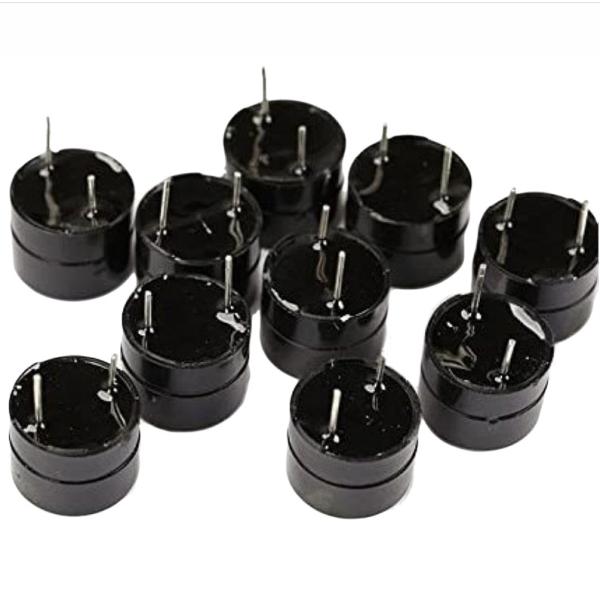

12mm Diameter Electronic Alarm PCB Panel Mounting Piezo Passive Buzzer Sounder

12mm Dia Electronic Alarm PCB Panel Mounting Piezo Passive Buzzer Sounder

TM-12095 Electronic Alarm buzzer

Type	Unit	Specification
Rated Voltage (Square wave)	Vp-p	9 or 12
Operating Voltage	Vp-p	1-20
Rated Current (MAX):	mA	7
Min Sound Output at 4.5KHz/10cm	dB	85
Resonant Frequency	Hz	4000
Capacitance at 100Hz	pF	12000±30%
Operating temperature:	℃	-30℃ - +70℃
Storage temperature::	℃	-40℃ - +85℃
Housing Material:		Black PPO
Lead Pin Material		Red Copper(DSn)
Tone Nature		Single

Package:

Classification of buzzer :

1. According to the principle of its driving mode, it can be
divided into: active buzzer (including driving circuit, also called
self-excited buzzer) and passive buzzer (external drive, also
called other excited buzzer) Sounder);

2. According to the different construction methods, it can be
divided into: electromagnetic buzzer and piezoelectric buzzer;

3. According to the different packages, it can be divided into: DIP
BUZZER (Pin Buzzer) and SMD BUZZER (SMD Buzzer);

4. According to the difference of current, it can be divided into:
DC buzzer and AC buzzer. Among them, DC is the most common
piezoelectric buzzer, which uses piezoelectric material, that is,
when the external force causes the piezoelectric material to occur
Piezoelectric materials generate electrical charges during
deformation. Similarly, piezoelectric materials deform when
energized.

The electromagnetic buzzer mainly uses the characteristics of the
conductive conductor to generate a magnetic field, and uses a fixed
permanent magnet and the conductive conductor to generate magnetic
force to push the tympanic membrane fixed on the coil.

Due to the different sounding principles of the two buzzers, the
piezoelectric structure is simple and durable but has a single tone
and color difference. It is suitable for devices such as alarms.
The electromagnetic type is mostly used for voice, music and other
equipment because of its good timbre.

Electromagnetic buzzer Workshop

Electronic Alarm Buzzer Certifications

Transport for BUZZER

8. Piezo Siren FAQ

1. Q: When can we get the reply?

Any inquiries will be replied within 24 hours.

2. Q: Can i have samples?

A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.

3. Q: What about minimum order quantity?

A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.

4. Q: What about delivery time?

A: We will send sample to you within 3 days.

Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.

5. Q: What about terms of payment?

A: Payment terms: T/T, west Union, Paypal and L/C etc.

6. Q: How you will send the goods to us?

A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.

7. Q: Are you trading company or manufacturer ?

A: We are in China buzzer manufactory

8. Q: Do you support OEM and ODM services?

A: Yes, surely support. we can customize products according to the drawing.

9. Q: Can you provide driven circuit?

A: Yes, of course sure.

10. Q: Can you solve technical problems for us?

A: Yes, Our Technical team will try our best to support you.

9. Contact Us

10. Other piezo Buzzer Catalogues

TM-12095 3V 5V 9V 12V magnetic buzzer
