| Categories | Pressure Vessel Steel Plate |
|---|---|
| Brand Name: | Gnee |
| Model Number: | 10CrMo9-10 |
| Certification: | SGS |
| Place of Origin: | Tianjin |
| MOQ: | 1 Ton/Tons |
| Price: | $680 / Ton |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800 Ton/Tons per Week |
| Packaging Details: | Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper |
| Standard:: | ASTM, bs, DIN, GB, JIS |
| Grade:: | 10CrMo9-10 |
| Place of Origin:: | Tianjin, China |
| Brand Name:: | Gnee |
| Model Number:: | According to customer requirements |
| Type:: | Steel plate/sheet/coil, Steel Plate |
| Technique:: | Cold rolled/Hot rolled |
| Surface Treatment:: | Coated |
| Application:: | Mechanical equipment, industry, metallurgy |
| Special Use:: | carbon steel plate, High-strength steel plate |
| Width:: | According to requirements |
| Length:: | According to requirements |
| Tolerance:: | ±1%, Thickness+/-0.01mm |
| Product Name:: | carbon steel sheet |
| Company Info. |
| Gnee Steel (tianjin) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

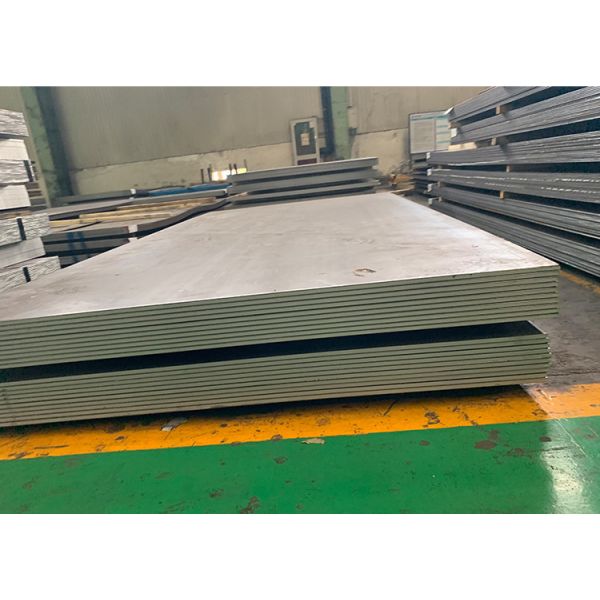

10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates
| Products | Hot rolled mild steel plate |
| Thickness | 0.12mm-60mm |
| Length | 1000-12000mm |
| Width | 600mm-1250mm |
| Delivery time | 20 days after receiving LC or deposit. |
| Payment terms | L/C,D/A,D/P,T/T,Western Union |
| Supply ablitity | 10000 Metric Ton/Metric Tons per Month |
| MOQ | 1 Metric Ton/Metric Tons |
| Application | Mechanical&manufacture,Steel structure,Shipbuilding,Bridging |
EN 1.7380 (10CrMo9-10) Chromium-Molybdenum Steel EN 1.7380 steel is an alloy steel formulated for primary forming into wrought products. 1.7380 is the EN numeric designation for this material. 10CrMo9-10 is the EN chemical designation. It has a moderately high density among EN wrought alloy steels.
EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties
EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
| Grade : | 10CrMo9-10 |
| Number: | 1.7380 |
| Classification: | Alloy special steel |
| Density: | 7.85 g/cm ³ |
10CrMo9-10 Chemical Composition Max (%)
| Grade | C | Si | Mn | P | S | Al(min) | N |
| 10CrMo9-10 | 0.08-0.14 | 0.50 | 0.4-0.80 | 0.020 | 0.010 | 0.012 | |
| Cr | Cu | Mo | Nb | Ni | Ti | V | |
| 2.0-2.50 | 0.30 | 0.90-1.10 |
10CrMo9-10 Mechanical Property
| Grade | Thickness | Yield | Tensilmie | Elongation | Impact Energy(KV J) min | ||
| 10CrMo9-10 | mm | Min Mpa | Mpa | Min % | -20° | 0° | +20° |
| ≤ 16 | 310 | 480-630 | 18 | f | f | 31 | |
| 16> to ≤40 | 300 | 480-630 | 18 | f | f | 31 | |
| 40> to ≤60 | 290 | 480-630 | 17 | f | f | 27 | |
| 60> to ≤100 | 280 | 470-620 | 17 | f | f | 27 | |
| 100> to ≤150 | 260 | 460-610 | 17 | f | f | 27 | |
| 150> to ≤250 | 250 | 450-600 | 17 | f | f | 27 | |




FAQ:
Q: How to get quotation?
A: When we receive your detailed enquiry, we will set the best price based on standard, steel grade, outer diameter, wall thickness, quantity, country. And we will send quotation to your mailbox.
Q: What is necessary information?
A: In order to get accurate quotation, the standard, material, outer diameter, wall thickness, quantity, destination port are necessary informations.
Q: What is payment terms?
A: FOB 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T BEFORE SHIPMENT
CIF and CFR 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T AS THE COPY OF B/L OR L/C AT SIGHT
|
