Non Metal Unarmored 72 Core Aerial Fiber Optic Cable

Categories	Aerial Fiber Optic Cable
Brand Name:	JQ/OEM
Model Number:	GYFTY
Certification:	ISO9001 ROHS CE-EMC FCC
Place of Origin:	Guangzhou,China
MOQ:	1km
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	4500KM Per Month
Delivery Time:	5-8 work days
Packaging Details:	wooden drum
Fiber count:	4-288 Cores
Fiber type:	single mode/multi mode
Jacket:	PE
Color:	Black
Product name:	Outdoor fiber optic cable
Length:	2km or customized length
Structure:	Loose tube
Installation:	Aerial or Duct
Number of conductors:	≥ 10

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Non Metal Unarmored 72 Core Aerial Fiber Optic Cable

Non-Metal Unarmored 12 24 48 72 Core Fiber Optic Cable GYFTY

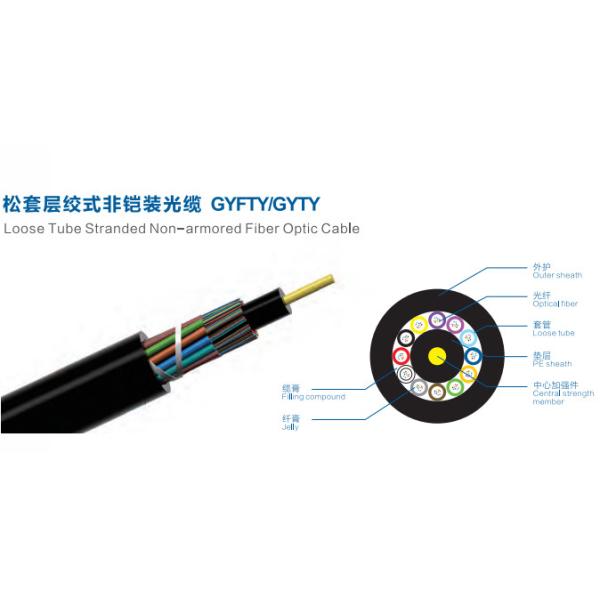

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.

5. jelly-filled, fiber contained loose tube and PP filler

6. water blocking tape, PE outer sheath

Application

Aerial or Duct

Optical Characteristics

		G.652D	50/125um	625/125μm
Attenuation	@850nm		≤3.0dB/km	≤3.0dB/km
(+20°C)	@1300nm		≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km
Bandwidth(ClassA)	@850nm		2500MHzkm	2200MHz:km
	@1300nm		21000MHz-km	2600MHzkm
NumericalAperture			0.200+0.015NA	0.275+0.015NA
CableCut- off Wavelength λcc		≤1260nm

Cable Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
>144	Available upon customer request

Product Detail

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
