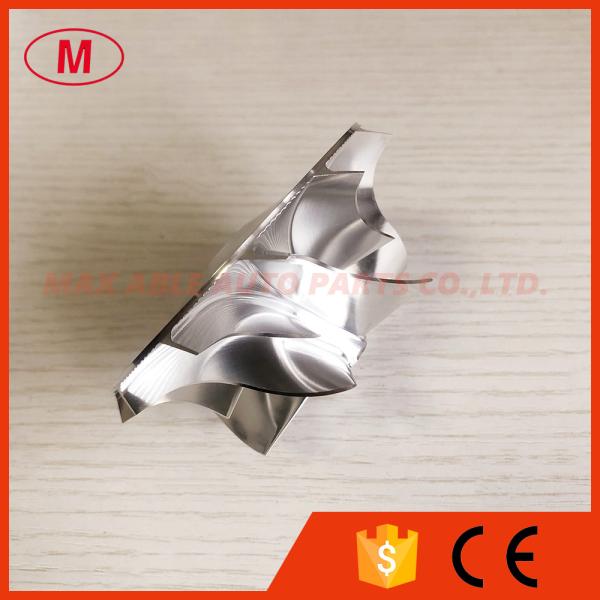

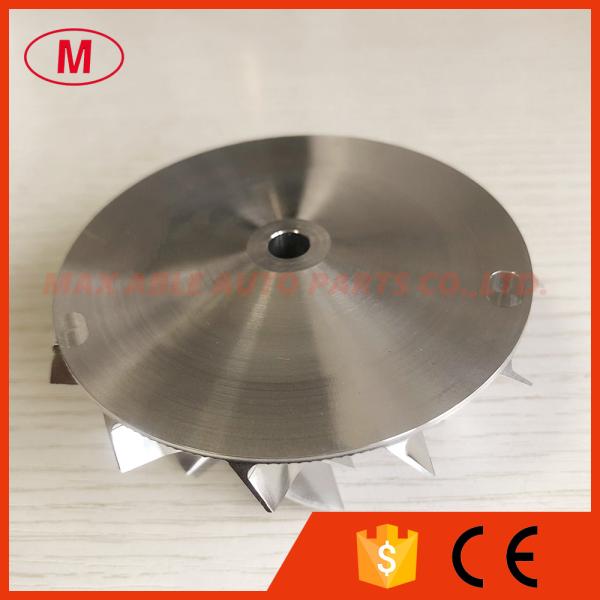

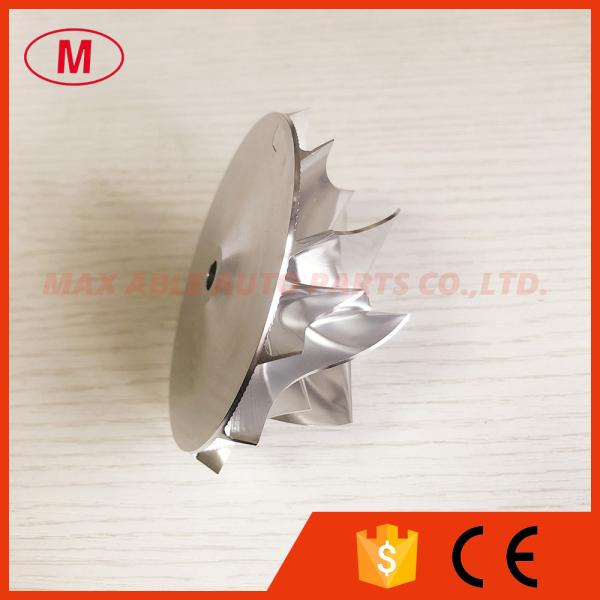

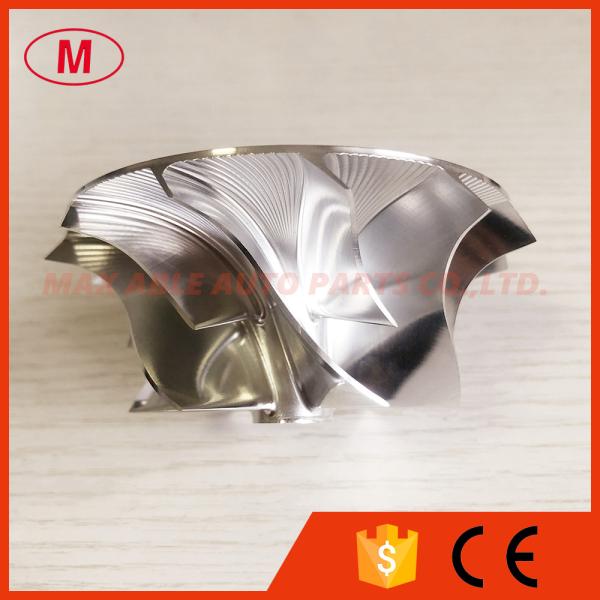

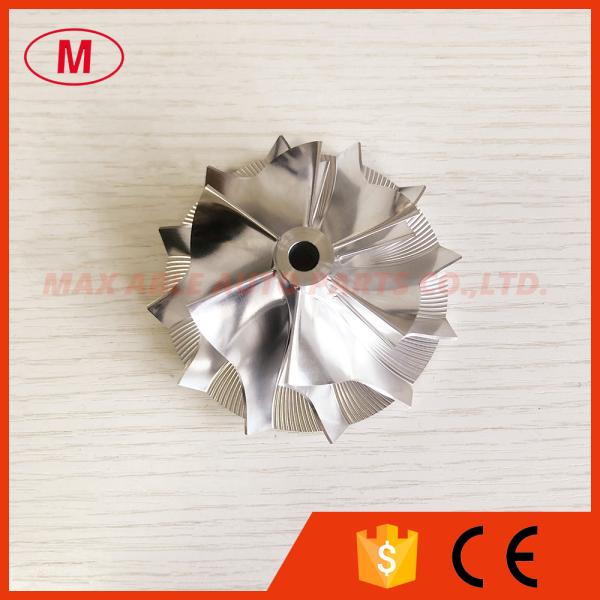

TD07S 57.69/78.00mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel

1. MODEL:TD07S FORWARD

2. TD07S 57.69/78.00mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.92mm

inducer:57.70mm

exducer:78.00mm

Tapered tip exducer:85.05mm

tip height:7.71mm

superback:2.70mm

Overall height:38.00mm

bore size :7.00mm

Trailing angle:50

Cutback:0.0

splitter height:21.90mm

sp height angle:-11.70

blades height:33.10mm

6+6 blades

forward rotation ​Tapered tip angle:30 degree ​

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheel have been balanced.

We can produce as your requirement.
