Aerospace Nickel Copper Tungsten Heavy Alloy Wear Resistance

Categories Tungsten Heavy Alloy
Brand Name: JINXING
Model Number: Tungsten Heavy Alloy
Certification: ISO 9001
Place of Origin: China
MOQ: 1kg
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Delivery Time: 10~25 work days
Packaging Details: Plywood Case
Material: Tungsten HD alloy WNiFe / WNiCu
Surface: Bright Ground finished
Standard: ASTM B777 , AMS-T-21014
Density: 17~18.5 g/cm3
Dimensions: Customized
Application: Balance weight, Ball bearing, Aerospace
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Aerospace Nickel Copper Tungsten Heavy Alloy Wear Resistance

Tungsten Nickel Copper (W-Ni-Cu) High Density Alloy Rod

High Density Alloy Properties:

· High density (17-18.75g/cm3)

· High melting point

· Wear resistance

· High tensile strength (700-1000Mpa), good elongation capacity

· Good plasticity and machinability

· Good thermal conductivity and electrical conductivity

· Low vapor pressure, excellent thermal stability, small thermal expansion coefficient

· High radiation absorption capacity(30-40% higher than lead), excellent absorption of γ-rays or X-rays

· Non-magnetic

Application:High Density Alloy Rod

1.WNiCu alloy is widely used in fields of aerospace, aviation, military and oil drilling; tungsten heavy alloy cylinders rod
2.It is also applied for electrical instrumentation, medical and industrial purpose;
3.WNiCu alloys can also used for producing balancing weights, high temperature moulds, electro-heat upsetting anvil block, the core of armour piercing shell and protection shields for high-energy rays.


Parameters of WNiCu Alloys: High Density Alloy Rod

ClassNominal WDensityMax. hardnessTensile strengthElongation
weight%g/ccRockwell ‘C’MPa%
Class19016.85-17.2532700-1200(600-800)20-33(4-8)
Class292.517.15-17.8533700-1400(500-600)15-25(3-5)
Class39517.75-18.3534700-12008-15
Class49718.25-18.8535600-10008-14
Note: The data in brackets apply to non-magnetic WNiCu alloy.

Synonyms:

High Density Tungsten Alloy Bar, High Density Tungsten Alloy Rods, Heavy Tungsten Alloy Bar, Heavy Tungsten Alloy Rods, WNiCu Rod, WNiCu Bar, 95WNiCu Bar, W-Ni-Cu Rods, 95WNiCu Rods, W-Ni-Cu Bar, ASTM B777 Tungsten Alloy Bar / Rods

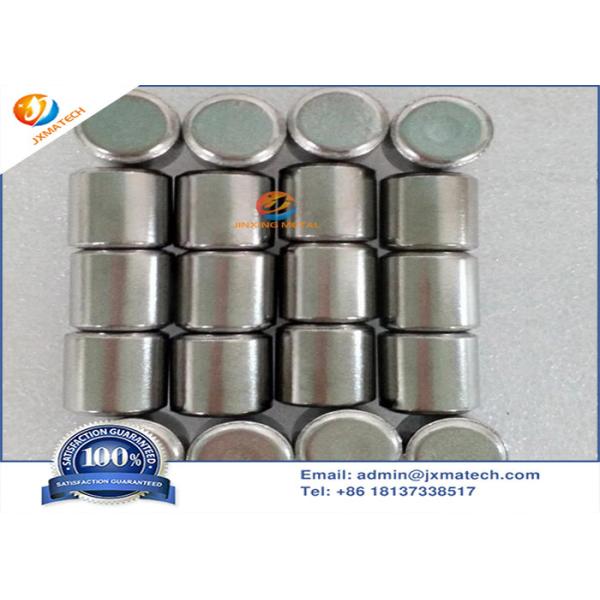

High Density Alloy Rod picture:
