IP68 Rated MC4 340W Polycrystalline Solar Panel 37V Anti PID

Categories Polycrystalline Solar Panel
Brand Name: Sunerise
Model Number: JC340-72P
Certification: CE/ TUV/ IOS
Place of Origin: Anhui, CN
MOQ: 31 pieces
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Delivery Time: 5-10 days
Packaging Details: 31 pieces in a pallet
Power: 340W
Voltage: 37V
Current: 9A
Weight: 21KG
Dimensions: 1956*992*40mm
Package: 31 pieces/ pallet
Application Level: Class A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP68 Rated MC4 340W Polycrystalline Solar Panel 37V Anti PID

25 Years Warranty IP68 Rated MC4 340W Poly Solar Energy Panel 37V


Applications:
Solar power stations.
Rural electrification ,small home power systems.
Power supply for traffic ,security ,gas industry.
12V and 24V battery charging system .
Other industrial and commercial applications.
Parameter:
Maximum Power at STC:340
Open Circuit Current:45.90
Short Circuit Current:9.62
Voltage at Maximum Power Point:37.60
Current at Maximum Power Point:9.05
Power Tolerance:0~+5W
Module Efficiency:17.06
Maximum Power at NOCT:247.40
Open Circuit Voltage:42.90
Short Circuit Current:7.60
Voltage at Maximum Power Point:34.60
Current at Maximum Power Point:7.10
STC:Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCT:Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s

STC(Standard Test Conditions)

Values at Standard Test Conditions STC ( Air Mass AM1.5, irradiance 1000W/ M², Cell Temperature 25℃)

NOTC(Standard Temperature Conditions)

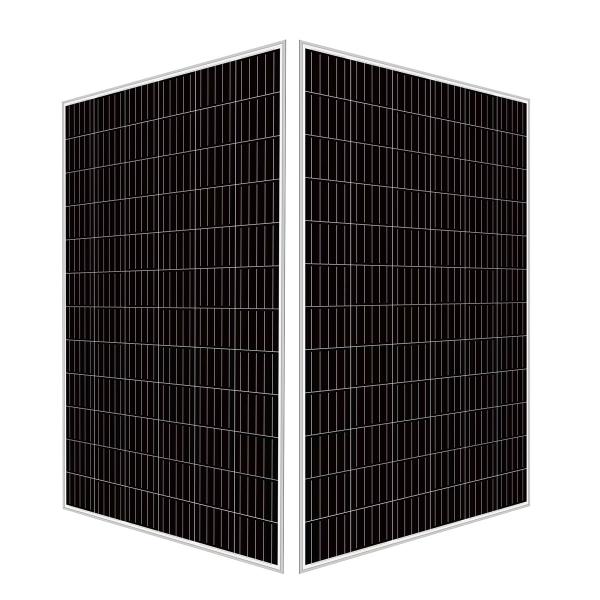

Product Photos:

Product Details:
Solar Cell
* Anti PID
* High Efficiency PV Cells
* Appearance Consistency
* Color sorting ensure consistent appearance on each module

Glass
* Anti-reflective glass
* Self-cleaning function
* Module efficiency is increased by 2%
* Service life is as long as 25 years
* Translucency of normal luminosity is increased by 2%


Junction box
* Heat dissipation
* Long service life
* IP67 protection level
* Quality diode ensures module running safety
* Conventional standalone edition and engineering custom edition


Frame
* Conventional frame
* Seal-lip design glue injection
* Silver frames
* Serrated-clip design tensile strength
* Boost bearing capability and prolong service life

Humanized design
* More protection with practical and effective design
* Prevent the aluminum frame from scratching the hand
* Using the rain to clean dirt remaining on the solar module

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.

2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

Our products could pass different labor testing according to different countries' requirements.


3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.


4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.


5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.


6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.


7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
