| Categories | Duct Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | MGTSV |
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Place of Origin: | Guangzhou China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 4500KM Per Month |
| Delivery Time: | 3-5dyas |
| Packaging Details: | 1/2/3/4/5 km in one wooden drum |
| Jacket material: | Flame-Retardant LSZH |
| Fiber count: | 4-288core |
| Structure: | Stranded |
| Product name: | Outdoor Optic Fiber Cable |
| Fiber type: | YOFC or as request |
| Application: | Aerial,Duct |
| Color: | Blue |
| Module: | MGTSV-24B1 |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV
Item Name | MGTSV Fiber Optic Cable |
Place of Origin | Guangdong,China |
Model Number | MGTSV |
Brand Name | JQ |
Fiber Type | Single mode ITU-T G652D |
Fiber No. | 2-288 cores |
Strength Member | Central Steel Wire/ FRP |
Material of Jacket | Flame-retardant Sheath |
Cable Structure | Stranded Loose Tube |
Certificate | ISO9001/CE/RoHS/CE |
Storing Temperature | -40℃ to +70℃ |
Application | Duct/Aerial |
Features
1.Good flame retardant performance.
2.High strength loose tube that is hydrolysis resistant.
3.Double sheathes and single armor providing excellent crush
resistance, water proof, and avoiding rat bite.
4.Loose tube wrapped by non-weaven tape has the water blocking
ability.
5.Special tube filling compound ensure a critical protection of
fiber.
6.Blue PVC or LSZH jacket: Flame retardant, the blue color is easy
to identify.
7.Crush resistance and flexibility.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical data
| Cable Type | Fiber Count | Tubes +Fills | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long /Short Term N/100m | Bending Radius Static /Dynamic mm |
MGTSV-2~6 | 2~60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62~72 | 62~72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74~96 | 74~96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98~120 | 98~120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122~144 | 122~144 | 12 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146~216 | 146~216 | 18 | 19 | 320 | 1750/3500 | 500/1500 | 15D/30D |

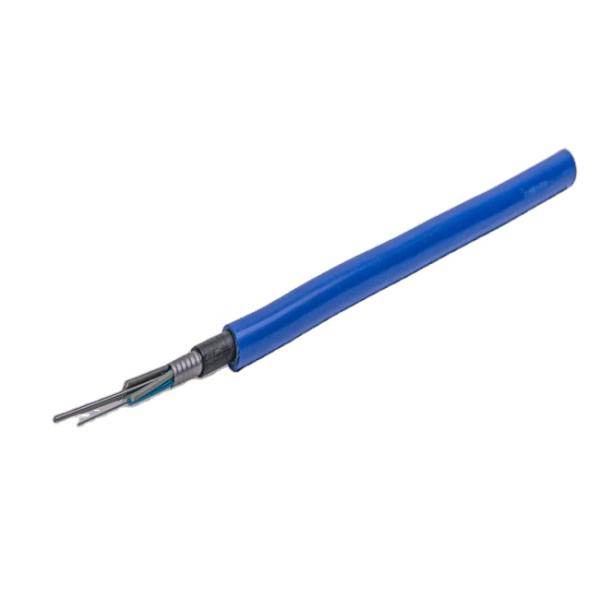

Product Image
Application
Suitable for Mine Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
|
