| Categories | Electric Wire Rope Hoist |
|---|---|
| Brand Name: | JCYC |
| Model Number: | CD1 |
| Certification: | CE ISO9001 manufacturing licence |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | negotiable |
| Supply Ability: | 1000pcs per month |
| Delivery Time: | 30 working day |
| Packaging Details: | Plywood Case |
| Name: | Widely Used Small Size Lifting Equipment Electric Cable Hoist |
| Capacity: | 1t-25t |
| Lift height: | 6/9/12/18/24m or at request |
| Girder: | Single girder / double girder |
| Rail Type: | I-Type, H-Type Rail |
| Travel speed: | 20 m/min |
| HS Code: | 8425110000 |
| Company Info. |
| Chongqing Shanyan Crane Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

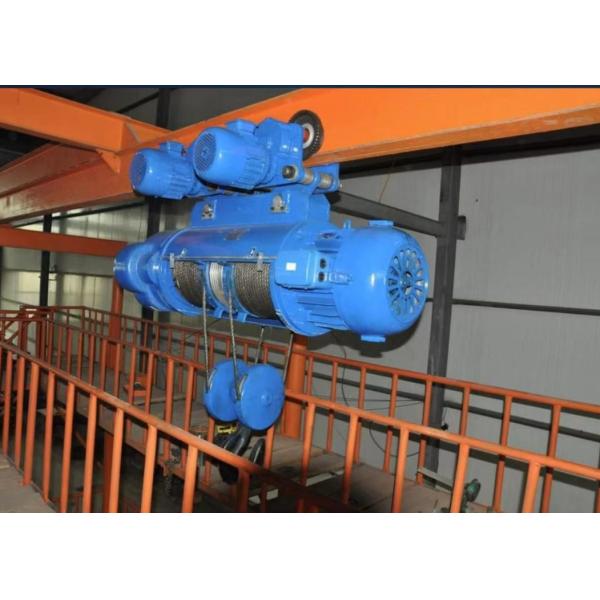

Widely Used Small Size Lifting Equipment Electric Cable Hoist
Brief Introduction
The electric wire rope hoist CD1/MD1 model have features of
compact, light, small-sized shape and smooth operation. It can be
used not only on the overhead rails, but also be used in
conjunction with many types of electric or manual cranes such as
the
single-grider crane, the double-grider crane, the cantilever crane
and the gantry cranes. The eletric hoist model MD1 with double
lifting speeds should be used in case where the hoist model CD1 can
not meet the requirements for fine abjustments during
recision operations.
Main Characteristics
* Model CD1, MD1 electric wire rope hoist is a small sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm crane.
Technical configuration
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
Notes
A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36
meters.
