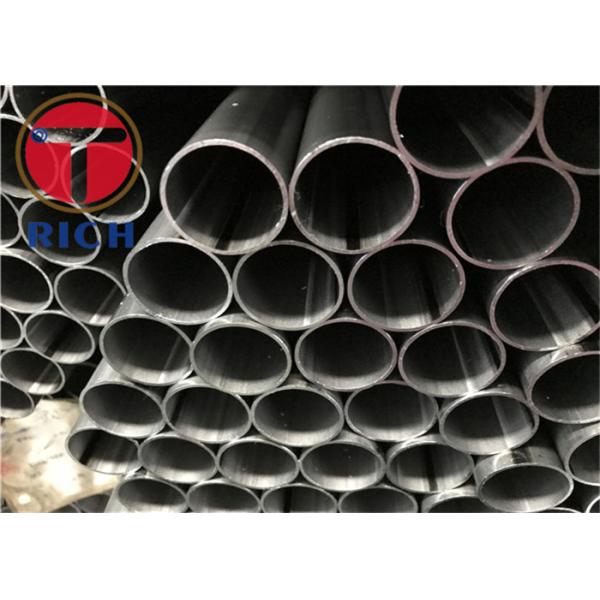

ASTM A671 EFW Seamless Boiler Tubes Electric Fusion Welded

Torich CA 55 CB 60 CB 65 ASTM A671 EFW Boiler Steel Tube Pipes

ASTM A 671/A671M-16a
Standard Specification for Electric-Fusion-Welded Steel Pipes for Atmospheric and Lower Temperatures
This standard is issued under the fixed designation A671/A671M; the number immediately following the designation indicates the year of original adoption or,in the case of revision, the year of last revision.A number in parentheses indicates the year of last reapproval,
A superscript epsilon indicates an editorial change since the last revision or reapproval.
Scope:
This Specification covers electric-fusion-welded steel pipe with filler and metal added,fabricated form pressure vessel quality plate of several analyses and strength vessel and suitable for high-pressure service at atmospheric and lower temperatures.Heat treatment may or may not be required to attain the desired properties or to comply with applicable code requirements.Supplementary requirements are provided for use when additional testing or examination is desired.
Size range :OD ≥400mm,WT ≥6mm.
Production method:
OD tolerance:±5% of the specified outside diameter.
Out of Roundness: Difference between major and minor outside diameter 1%
Thickness: The minimum wall thickness at any point in the pipe shall not be more than 0.01inch 0.3mm under the specified nominal thickness.
Heat treatment:
1. Without heat treatment
2. Stress released
3. Normalizing
4. Normalizing+Tempering
5. Quenched and tempered
6. Quenched and precipitation heat treated

Testing:
1. Tension Test:
2. Transverse Guided Welded Bend Test

Material:
CA 55,CB 60,CB 65,CB 70,CB 60,CB 65,CC70,CD70,CD80,CFA 65
Referenced Documents:
A20/A20M Specification for General Requirements for Steel plates for Pressure Vessels.
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
A435/A435M Specification for Straight-Beam Ultrasonic Examination of Steel Plates.
A530/A530M Specification for General Requirements for Specialized Carbon and Alloy Steel Pipes
A577/A577M Specification for Ultrasonic Angle-Bram Examination of Steel Plates
A578/A578M Specification for Straight-Beam Ultrasonic Examination of Rolled Steel Plates for Special Applications
E110 Test Method for Rockwell and Brinell Hardness of Metallic Materials by Portable hardness Testers
E165/E165M Practice for Liquid Penetrant Examination for General Industry.

Picture:


QUALITY CONTROL

A&Q

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
